M2

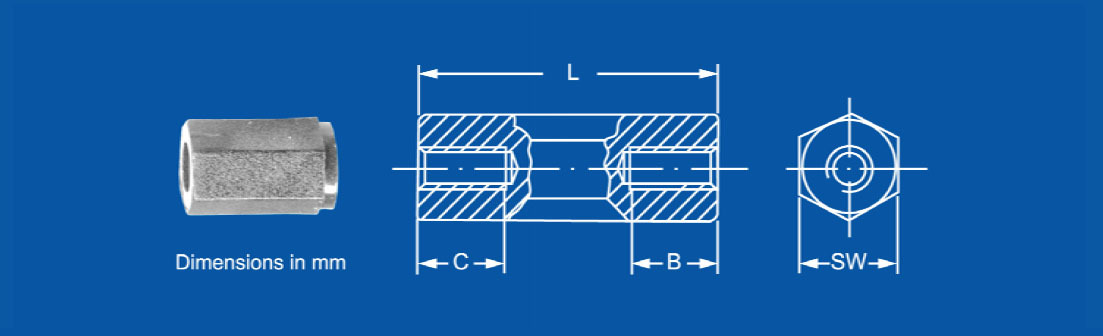

Female - Female

Polyamide Max Temp 110°C

Brass - Nickel Plated

Length (mm)	Part Number	C	B	SW	ADD
5	10.2060.05	5	-	4	Add to enquiry
6	10.2060.06	6	-	4	Add to enquiry
8	10.2060.08	8	-	4	Add to enquiry
10	10.2060.10	10	-	4	Add to enquiry
12	10.2060.12	6	6	4	Add to enquiry
15	10.2060.15	6	6	4	Add to enquiry
18	10.2060.18	6	6	4	Add to enquiry
20	10.2060.20	6	6	4	Add to enquiry
25	10.2060.25	6	6	4	Add to enquiry
30	10.2060.30	6	6	4	Add to enquiry
35	10.2060.35	6	6	4	Add to enquiry
40	10.2060.40	6	6	4	Add to enquiry
45	10.2060.45	6	6	4	Add to enquiry
50	10.2060.50	6	6	4	Add to enquiry

Steel - Zinc Plated

Length (mm)	Part Number	C	B	SW	ADD
5	10.2061.05	5	-	4	Add to enquiry
8	10.2061.08	8	-	4	Add to enquiry
10	10.2061.10	10	-	4	Add to enquiry
12	10.2061.12	6	6	4	Add to enquiry
15	10.2061.15	6	6	4	Add to enquiry
18	10.2061.18	6	6	4	Add to enquiry
20	10.2061.20	6	6	4	Add to enquiry
25	10.2061.25	6	6	4	Add to enquiry
30	10.2061.30	6	6	4	Add to enquiry
35	10.2061.35	6	6	4	Add to enquiry
40	10.2061.40	6	6	4	Add to enquiry

Stainless Steel

Length (mm)	Part Number	C	B	SW	ADD
5	10.2063.05	5	-	4	Add to enquiry
8	10.2063.08	8	-	4	Add to enquiry
10	10.2063.10	10	-	4	Add to enquiry
12	10.2063.12	6	6	4	Add to enquiry
15	10.2063.15	6	6	4	Add to enquiry
18	10.2063.18	6	6	4	Add to enquiry
20	10.2063.20	6	6	4	Add to enquiry
25	10.2063.25	6	6	4	Add to enquiry
30	10.2063.30	6	6	4	Add to enquiry
35	10.2063.35	6	6	4	Add to enquiry
40	10.2063.40	6	6	4	Add to enquiry
45	10.2063.45	6	6	4	Add to enquiry
50	10.2063.50	6	6	4	Add to enquiry
55	10.2063.55	6	6	4	Add to enquiry
60	10.2063.60	6	6	4	Add to enquiry

Polyamide

Length (mm)	Part Number	C	B	SW	ADD
5	10.2062.05	5	-	5	Add to enquiry
6	10.2062.06	6	-	5	Add to enquiry
8	10.2062.08	8	-	5	Add to enquiry
10	10.2062.10	10	-	5	Add to enquiry
12	10.2062.12	12	-	5	Add to enquiry
15	10.2062.15	7.5	7.5	5	Add to enquiry
18	10.2062.18	9	9	5	Add to enquiry
20	10.2062.20	10	10	5	Add to enquiry
25	10.2062.25	10	10	5	Add to enquiry
30	10.2062.30	10	10	5	Add to enquiry
35	10.2062.35	10	10	5	Add to enquiry
40	10.2062.40	10	10	5	Add to enquiry
45	10.2062.45	10	10	5	Add to enquiry

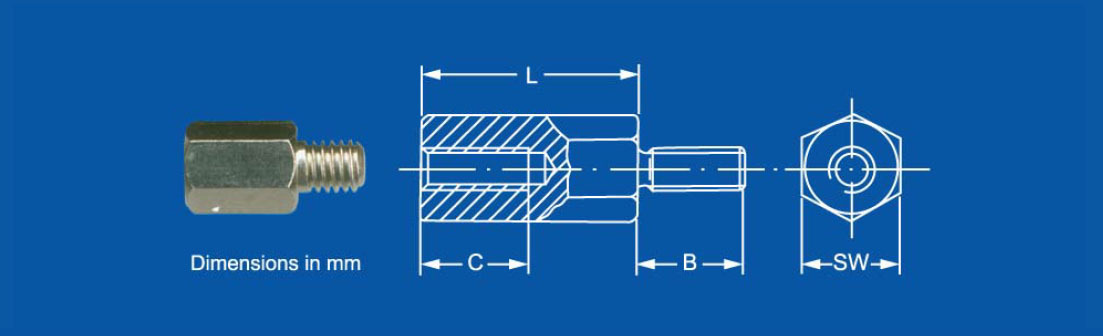

Male - Female

Polyamide Max Temp 110°C

Brass - Nickel Plated

Length (mm)	Part Number	C	B	SW	ADD
5	10.2040.05(5)	3	5	4	Add to enquiry
6	10.2040.06(5)	4	5	4	Add to enquiry
8	10.2040.08(5)	5	5	4	Add to enquiry
10	10.2040.10(5)	6	5	4	Add to enquiry
12	10.2040.12(5)	6	5	4	Add to enquiry
15	10.2040.15(5)	6	5	4	Add to enquiry
18	10.2040.18(5)	6	5	4	Add to enquiry
20	10.2040.20(5)	6	5	4	Add to enquiry
25	10.2040.25(5)	6	5	4	Add to enquiry
30	10.2040.30(5)	6	5	4	Add to enquiry
35	10.2040.35(5)	6	5	4	Add to enquiry
40	10.2040.40(5)	6	5	4	Add to enquiry
45	10.2040.45(5)	6	5	4	Add to enquiry
50	10.2040.50(5)	6	5	4	Add to enquiry

Steel - Zinc Plated

Length (mm)	Part Number	C	B	SW	ADD
5	10.2041.05(5)	3	5	4	Add to enquiry
8	10.2041.08(5)	5	5	4	Add to enquiry
10	10.2041.10(5)	6	5	4	Add to enquiry
12	10.2041.12(5)	6	5	4	Add to enquiry
15	10.2041.15(5)	6	5	4	Add to enquiry
18	10.2041.18(5)	6	5	4	Add to enquiry
20	10.2041.20(5)	6	5	4	Add to enquiry
25	10.2041.25(5)	6	5	4	Add to enquiry
30	10.2041.30(5)	6	5	4	Add to enquiry
35	10.2041.35(5)	6	5	4	Add to enquiry
40	10.2041.40(5)	6	5	4	Add to enquiry

Stainless Steel

Length (mm)	Part Number	C	B	SW	ADD
5	10.2043.05(5)	2.5	5	5	Add to enquiry
8	10.2043.08(5)	5	5	5	Add to enquiry
10	10.2043.10(5)	6	5	5	Add to enquiry
12	10.2043.12(5)	6	5	5	Add to enquiry
15	10.2043.15(5)	6	5	5	Add to enquiry
18	10.2043.18(5)	6	5	5	Add to enquiry
20	10.2043.20(5)	6	5	5	Add to enquiry
25	10.2043.25(5)	6	5	5	Add to enquiry
30	10.2043.30(5)	6	5	5	Add to enquiry
35	10.2043.35(5)	6	5	5	Add to enquiry
40	10.2043.40(5)	6	5	5	Add to enquiry
45	10.2043.45(5)	6	5	5	Add to enquiry
50	10.2043.50(5)	6	5	5	Add to enquiry
55	10.2043.55(5)	6	5	5	Add to enquiry
60	10.2043.60(5)	6	5	5	Add to enquiry

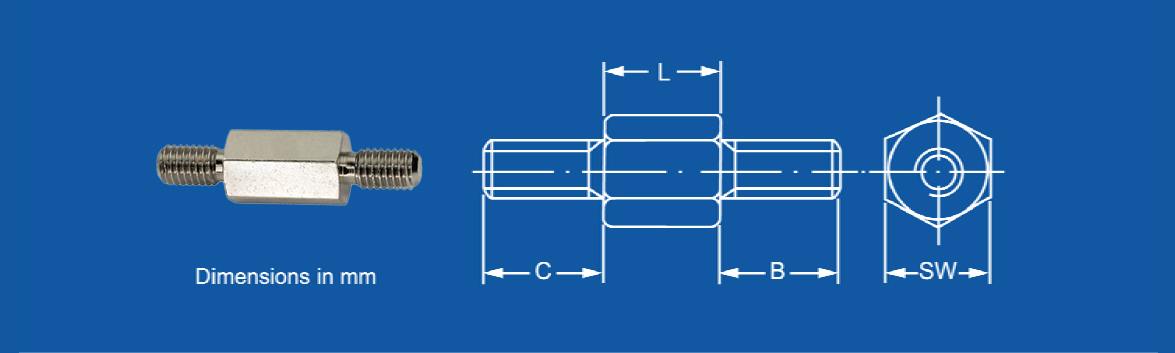

Male - Male

Polyamide Max Temp 110°C

Brass - Nickel Plated

Length (mm)	Part Number	C	B	SW	ADD
5	10.2080.05	5	5	4	Add to enquiry
6	10.2080.06	5	5	4	Add to enquiry
8	10.2080.08	5	5	4	Add to enquiry
10	10.2080.10	5	5	4	Add to enquiry
12	10.2080.12	5	5	4	Add to enquiry
15	10.2080.15	5	5	4	Add to enquiry
18	10.2080.18	5	5	4	Add to enquiry
20	10.2080.20	5	5	4	Add to enquiry
25	10.2080.25	5	5	4	Add to enquiry
30	10.2080.30	5	5	4	Add to enquiry
35	10.2080.35	5	5	4	Add to enquiry
40	10.2080.40	5	5	4	Add to enquiry
45	10.2080.45	5	5	4	Add to enquiry
50	10.2080.50	5	5	4	Add to enquiry

Steel - Zinc Plated

Length (mm)	Part Number	C	B	SW	ADD
5	10.2081.05	5	5	4	Add to enquiry
6	10.2081.06	5	5	4	Add to enquiry
8	10.2081.08	5	5	4	Add to enquiry
10	10.2081.10	5	5	4	Add to enquiry
12	10.2081.12	5	5	4	Add to enquiry
15	10.2081.15	5	5	4	Add to enquiry
18	10.2081.18	5	5	4	Add to enquiry
20	10.2081.20	5	5	4	Add to enquiry
25	10.2081.25	5	5	4	Add to enquiry
30	10.2081.30	5	5	4	Add to enquiry
35	10.2081.35	5	5	4	Add to enquiry
40	10.2081.40	5	5	4	Add to enquiry

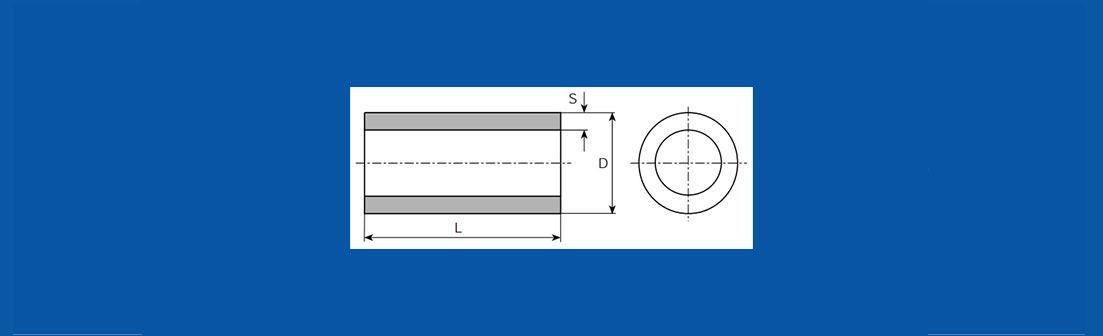

Spacer Sleeves

Aluminium

Length (mm)	Part Number	D	S	ADD
2	10x30020030.10	3	0.3	Add to enquiry
3	10x30030050.10	3	0.5	Add to enquiry
4	10x30040030.10	3	0.3	Add to enquiry
5	10x30050030.10	3	0.3	Add to enquiry
1	10x40010080.10	4	0.8	Add to enquiry
2	10x40020080.10	4	0.8	Add to enquiry
3	10x40030080.10	4	0.8	Add to enquiry
4	10x40040080.10	4	0.8	Add to enquiry
5	10x40050080.10	4	0.8	Add to enquiry
5.3	10x40053080.10	4	0.8	Add to enquiry
5.5	10x40055080.10	4	0.8	Add to enquiry
6	10x40060080.10	4	0.8	Add to enquiry
7	10x40070080.10	4	0.8	Add to enquiry
8	10x40080080.10	4	0.8	Add to enquiry
9	10x40090080.10	4	0.8	Add to enquiry
10	10x40100080.10	4	0.8	Add to enquiry
12	10x40120080.10	4	0.8	Add to enquiry
15	10x40150080.10	4	0.8	Add to enquiry
16	10x40160080.10	4	0.8	Add to enquiry
20	10x40200080.10	4	0.8	Add to enquiry
30	10x40300080.10	4	0.8	Add to enquiry
2.2	10x45022090.10	4.5	0.9	Add to enquiry
6.5	10x45065090.10	4.5	0.9	Add to enquiry

M2.5

Female - Female

Polyamide Max Temp 110°C

Brass - Nickel Plated

Length (mm)	Part Number	C	B	SW	ADD
5	10.2560.05	5	-	5	Add to enquiry
6	10.2560.06	6	-	5	Add to enquiry
8	10.2560.08	8	-	5	Add to enquiry
10	10.2560.10	10	-	5	Add to enquiry
12	10.2560.12	12	-	5	Add to enquiry
15	10.2560.15	15	-	5	Add to enquiry
18	10.2560.18	9	9	5	Add to enquiry
20	10.2560.20	10	10	5	Add to enquiry
25	10.2560.25	10	10	5	Add to enquiry
30	10.2560.30	10	10	5	Add to enquiry
35	10.2560.35	10	10	5	Add to enquiry
40	10.2560.40	10	10	5	Add to enquiry
45	10.2560.45	10	10	5	Add to enquiry
50	10.2560.50	10	10	5	Add to enquiry
55	10.2560.55	10	10	5	Add to enquiry
60	10.2560.60	10	10	5	Add to enquiry

Steel - Zinc Plated

Length (mm)	Part Number	C	B	SW	ADD
5	10.2561.05	5	-	5	Add to enquiry
6	10.2561.06	6	-	5	Add to enquiry
8	10.2561.08	8	-	5	Add to enquiry
10	10.2561.10	10	-	5	Add to enquiry
12	10.2561.12	12	-	5	Add to enquiry
15	10.2561.15	15	-	5	Add to enquiry
18	10.2561.18	9	9	5	Add to enquiry
20	10.2561.20	10	10	5	Add to enquiry
25	10.2561.25	10	10	5	Add to enquiry
30	10.2561.30	10	10	5	Add to enquiry
35	10.2561.35	10	10	5	Add to enquiry
40	10.2561.40	10	10	5	Add to enquiry
45	10.2561.45	10	10	5	Add to enquiry
50	10.2561.50	10	10	5	Add to enquiry

Stainless Steel

Length (mm)	Part Number	C	B	SW	ADD
5	10.2563.05	5	-	5	Add to enquiry
8	10.2563.08	8	-	5	Add to enquiry
10	10.2563.10	10	-	5	Add to enquiry
12	10.2563.12	12	-	5	Add to enquiry
15	10.2563.15	7	7	5	Add to enquiry
18	10.2563.18	7	7	5	Add to enquiry
20	10.2563.20	7	7	5	Add to enquiry
25	10.2563.25	7	7	5	Add to enquiry
30	10.2563.30	7	7	5	Add to enquiry
35	10.2563.35	7	7	5	Add to enquiry
40	10.2563.40	7	7	5	Add to enquiry
45	10.2563.45	7	7	5	Add to enquiry
50	10.2563.50	7	7	5	Add to enquiry
55	10.2563.55	7	7	5	Add to enquiry
60	10.2563.60	7	7	5	Add to enquiry

Polyamide

Length (mm)	Part Number	C	B	SW	ADD
5	10.2562.05	5	-	5	Add to enquiry
6	10.2562.06	6	-	5	Add to enquiry
8	10.2562.08	8	-	5	Add to enquiry
10	10.2562.10	10	-	5	Add to enquiry
12	10.2562.12	12	-	5	Add to enquiry
15	10.2562.15	7	7	5	Add to enquiry
18	10.2562.18	9	9	5	Add to enquiry
20	10.2562.20	10	10	5	Add to enquiry
25	10.2562.25	10	10	5	Add to enquiry
30	10.2562.30	10	10	5	Add to enquiry
35	10.2562.35	10	10	5	Add to enquiry
40	10.2562.40	10	10	5	Add to enquiry
45	10.2562.45	10	10	5	Add to enquiry

Polyamide with Brass Insert

Length (mm)	Part Number	C	B	SW	ADD
15	10.2565.15	6	6	6	Add to enquiry
18	10.2565.18	6	6	6	Add to enquiry
20	10.2565.20	6	6	6	Add to enquiry
25	10.2565.25	6	6	6	Add to enquiry
30	10.2565.30	6	6	6	Add to enquiry
35	10.2565.35	6	6	6	Add to enquiry
40	10.2565.40	6	6	6	Add to enquiry
45	10.2565.45	6	6	6	Add to enquiry
50	10.2565.50	6	6	6	Add to enquiry
55	10.2565.55	6	6	6	Add to enquiry
60	10.2565.60	6	6	6	Add to enquiry
65	10.2565.65	6	6	6	Add to enquiry

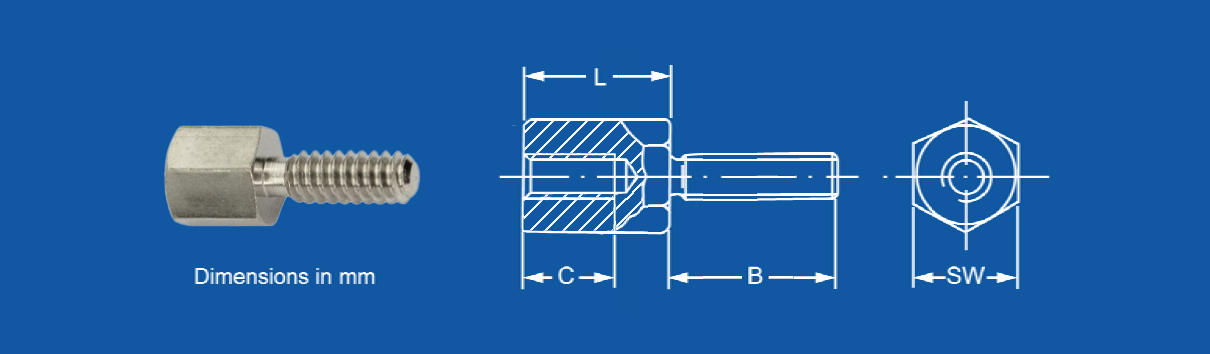

Male - Female

Polyamide Max Temp 110°C

Brass - Nickel Plated

Length (mm)	Part Number	C	B	SW	ADD
5	10.2540.05(6)	3	6	5	Add to enquiry
6	10.2540.06(6)	4	6	5	Add to enquiry
8	10.2540.08(6)	5	6	5	Add to enquiry
10	10.2540.10(6)	6	6	5	Add to enquiry
12	10.2540.12(6)	7	6	5	Add to enquiry
15	10.2540.15(6)	10	6	5	Add to enquiry
18	10.2540.18(6)	10	6	5	Add to enquiry
20	10.2540.20(6)	10	6	5	Add to enquiry
25	10.2540.25(6)	10	6	5	Add to enquiry
30	10.2540.30(6)	10	6	5	Add to enquiry
35	10.2540.35(6)	10	6	5	Add to enquiry
40	10.2540.40(6)	10	6	5	Add to enquiry
45	10.2540.45(6)	10	6	5	Add to enquiry
50	10.2540.50(6)	10	6	5	Add to enquiry
55	10.2540.55(6)	10	6	5	Add to enquiry
60	10.2540.60(6)	10	6	5	Add to enquiry

Steel - Zinc Plated

Length (mm)	Part Number	C	B	SW	ADD
5	10.2541.05(6)	3	6	5	Add to enquiry
8	10.2541.08(6)	5	6	5	Add to enquiry
10	10.2541.10(6)	6	6	5	Add to enquiry
12	10.2541.12(6)	7	6	5	Add to enquiry
15	10.2541.15(6)	10	6	5	Add to enquiry
18	10.2541.18(6)	10	6	5	Add to enquiry
20	10.2541.20(6)	10	6	5	Add to enquiry
25	10.2541.25(6)	10	6	5	Add to enquiry
30	10.2541.30(6)	10	6	5	Add to enquiry
35	10.2541.35(6)	10	6	5	Add to enquiry
40	10.2541.40(6)	10	6	5	Add to enquiry
45	10.2541.45(6)	10	6	5	Add to enquiry
50	10.2541.50(6)	10	6	5	Add to enquiry

Stainless Steel

Length (mm)	Part Number	C	B	SW	ADD
5	10.2543.05(6)	2.5	6	5	Add to enquiry
8	10.2543.08(6)	5	6	5	Add to enquiry
10	10.2543.10(6)	6	6	5	Add to enquiry
12	10.2543.12(6)	7	6	5	Add to enquiry
15	10.2543.15(6)	7	6	5	Add to enquiry
18	10.2543.18(6)	7	6	5	Add to enquiry
20	10.2543.20(6)	7	6	5	Add to enquiry
25	10.2543.25(6)	7	6	5	Add to enquiry
30	10.2543.30(6)	7	6	5	Add to enquiry
35	10.2543.35(6)	7	6	5	Add to enquiry
40	10.2543.40(6)	7	6	5	Add to enquiry
45	10.2543.45(6)	7	6	5	Add to enquiry
50	10.2543.50(6)	7	6	5	Add to enquiry
55	10.2543.55(6)	7	6	5	Add to enquiry
60	10.2543.60(6)	7	6	5	Add to enquiry

Polyamide

Length (mm)	Part Number	C	B	SW	ADD
15	10.2542.15(8)	6	6	6	Add to enquiry
18	10.2542.18(8)	6	6	6	Add to enquiry
20	10.2542.20(8)	6	6	6	Add to enquiry
25	10.2542.25(8)	6	6	6	Add to enquiry
30	10.2542.30(8)	6	6	6	Add to enquiry
35	10.2542.35(8)	6	6	6	Add to enquiry
40	10.2542.40(8)	6	6	6	Add to enquiry
45	10.2542.45(8)	6	6	6	Add to enquiry
50	10.2542.50(8)	6	6	6	Add to enquiry
55	10.2542.55(8)	6	6	6	Add to enquiry
60	10.2542.60(8)	6	6	6	Add to enquiry

Polyamide with Brass Insert

Length (mm)	Part Number	C	B	SW	ADD
15	10.2545.15(6)	6	6	6	Add to enquiry
18	10.2545.18(6)	6	6	6	Add to enquiry
20	10.2545.20(6)	6	6	6	Add to enquiry
25	10.2545.25(6)	6	6	6	Add to enquiry
30	10.2545.30(6)	6	6	6	Add to enquiry
35	10.2545.35(6)	6	6	6	Add to enquiry
40	10.2545.40(6)	6	6	6	Add to enquiry
45	10.2545.45(6)	6	6	6	Add to enquiry
50	10.2545.50(6)	6	6	6	Add to enquiry
55	10.2545.55(6)	6	6	6	Add to enquiry
60	10.2545.60(6)	6	6	6	Add to enquiry
65	10.2545.65(6)	6	6	6	Add to enquiry

Male - Male

Polyamide Max Temp 110°C

Brass - Nickel Plated

Length (mm)	Part Number	C	B	SW	ADD
5	10.2580.05	6	6	5	Add to enquiry
6	10.2580.06	6	6	5	Add to enquiry
8	10.2580.08	6	6	5	Add to enquiry
10	10.2580.10	6	6	5	Add to enquiry
12	10.2580.12	6	6	5	Add to enquiry
15	10.2580.15	6	6	5	Add to enquiry
18	10.2580.18	6	6	5	Add to enquiry
20	10.2580.20	6	6	5	Add to enquiry
25	10.2580.25	6	6	5	Add to enquiry
30	10.2580.30	6	6	5	Add to enquiry
35	10.2580.35	6	6	5	Add to enquiry
40	10.2580.40	6	6	5	Add to enquiry
45	10.2580.45	6	6	5	Add to enquiry
50	10.2580.50	6	6	5	Add to enquiry
55	10.2580.55	6	6	5	Add to enquiry
60	10.2580.60	6	6	5	Add to enquiry

Steel - Zinc Plated

Length (mm)	Part Number	C	B	SW	ADD
5	10.2581.05	6	6	5	Add to enquiry
8	10.2581.08	6	6	5	Add to enquiry
10	10.2581.10	6	6	5	Add to enquiry
12	10.2581.12	6	6	5	Add to enquiry
15	10.2581.15	6	6	5	Add to enquiry
18	10.2581.18	6	6	5	Add to enquiry
20	10.2581.20	6	6	5	Add to enquiry
25	10.2581.25	6	6	5	Add to enquiry
30	10.2581.30	6	6	5	Add to enquiry
35	10.2581.35	6	6	5	Add to enquiry
40	10.2581.40	6	6	5	Add to enquiry
45	10.2581.45	6	6	5	Add to enquiry
50	10.2581.50	6	6	5	Add to enquiry

Stainless Steel

Length (mm)	Part Number	C	B	SW	ADD
5	10.2583.05	6	6	5	Add to enquiry
8	10.2583.08	6	6	5	Add to enquiry
10	10.2583.10	6	6	5	Add to enquiry
12	10.2583.12	6	6	5	Add to enquiry
15	10.2583.15	6	6	5	Add to enquiry
18	10.2583.18	6	6	5	Add to enquiry
20	10.2583.20	6	6	5	Add to enquiry
25	10.2583.25	6	6	5	Add to enquiry
30	10.2583.30	6	6	5	Add to enquiry
35	10.2583.35	6	6	5	Add to enquiry
40	10.2583.40	6	6	5	Add to enquiry
45	10.2583.45	6	6	5	Add to enquiry
50	10.2583.50	6	6	5	Add to enquiry

Polyamide with Brass Insert

Length (mm)	Part Number	C	B	SW	ADD
15	10.2585.15	6	6	6	Add to enquiry
18	10.2585.18	6	6	6	Add to enquiry
20	10.2585.20	6	6	6	Add to enquiry
25	10.2585.25	6	6	6	Add to enquiry
30	10.2585.30	6	6	6	Add to enquiry
35	10.2585.35	6	6	6	Add to enquiry
40	10.2585.40	6	6	6	Add to enquiry
45	10.2585.45	6	6	6	Add to enquiry
50	10.2585.50	6	6	6	Add to enquiry
55	10.2585.55	6	6	6	Add to enquiry
60	10.2585.60	6	6	6	Add to enquiry
65	10.2585.65	6	6	6	Add to enquiry

Self Tapping

Brass - Nickel Plated

Length (mm)	Part Number	C	B	SW	D1	D2	ADD
8	10.2553.08	5	5	5	2.1	1.6	Add to enquiry
10	10.2553.10	6	5	5	2.1	1.6	Add to enquiry
12	10.2553.12	7	5	5	2.1	1.6	Add to enquiry
15	10.2553.15	10	5	5	2.1	1.6	Add to enquiry
20	10.2553.20	10	5	5	2.1	1.6	Add to enquiry

Steel Zinc Plated

Length (mm)	Part Number	C	B	SW	D1	D2	ADD
8	10.2554.08	5	5	5	2.1	1.6	Add to enquiry
10	10.2554.10	6	5	5	2.1	1.6	Add to enquiry
12	10.2554.12	7	5	5	2.1	1.6	Add to enquiry
15	10.2554.15	10	5	5	2.1	1.6	Add to enquiry
20	10.2554.20	10	5	5	2.1	1.6	Add to enquiry

Spacer Sleeves

Aluminium

Length (mm)	Part Number	D	S	ADD
4	10x40040050.10	4	0.5	Add to enquiry
2	10x45020090.10	4.5	0.9	Add to enquiry
2.5	10x45025090.10	4.5	0.9	Add to enquiry
3	10x45030090.10	4.5	0.9	Add to enquiry
3.5	10x45035090.10	4.5	0.9	Add to enquiry
4	10x45040090.10	4.5	0.9	Add to enquiry
4.4	10x45044090.10	4.5	0.9	Add to enquiry
4.5	10x45045090.10	4.5	0.9	Add to enquiry
5	10x45050090.10	4.5	0.9	Add to enquiry
6	10x45060090.10	4.5	0.9	Add to enquiry
7	10x45070090.10	4.5	0.9	Add to enquiry
7.3	10x45073090.10	4.5	0.9	Add to enquiry
8	10x45080090.10	4.5	0.9	Add to enquiry
9	10x45090090.10	4.5	0.9	Add to enquiry
10	10x45100090.10	4.5	0.9	Add to enquiry
10.5	10x45105090.10	4.5	0.9	Add to enquiry
11	10x45110090.10	4.5	0.9	Add to enquiry
12	10x45120090.10	4.5	0.9	Add to enquiry
13.5	10x45135090.10	4.5	0.9	Add to enquiry
14	10x45140090.10	4.5	0.9	Add to enquiry
15	10x45150090.10	4.5	0.9	Add to enquiry
16	10x45160090.10	4.5	0.9	Add to enquiry
20	10x45200090.10	4.5	0.9	Add to enquiry

Polyamid, Black

Length (mm)	Part Number	D1	D	ADD
2	10x05002027.pa	2.7	5	Add to enquiry
3	10x05003027.pa	2.7	5	Add to enquiry
5	10x05005027.pa	2.7	5	Add to enquiry
7.5	10x05007527.pa	2.7	5	Add to enquiry
10	10x05010027.pa	2.7	5	Add to enquiry
13.5	10x05013527.pa	2.7	5	Add to enquiry
15	10x05015027.pa	2.7	5	Add to enquiry
20	10x05020027.pa	2.7	5	Add to enquiry

M3

Female - Female

Polyamide Max Temp 110°C

Brass - Nickel Plated

Length (mm)	Part Number	C	B	SW	ADD
5	10.3060.05	5	-	6	Add to enquiry
6	10.3060.06	6	-	6	Add to enquiry
8	10.3060.08	8	-	6	Add to enquiry
10	10.3060.10	10	-	6	Add to enquiry
12	10.3060.12	12	-	6	Add to enquiry
15	10.3060.15	15	-	6	Add to enquiry
18	10.3060.18	9	9	6	Add to enquiry
20	10.3060.20	10	10	6	Add to enquiry
25	10.3060.25	10	10	6	Add to enquiry
30	10.3060.30	10	10	6	Add to enquiry
35	10.3060.35	10	10	6	Add to enquiry
40	10.3060.40	10	10	6	Add to enquiry
45	10.3060.45	10	10	6	Add to enquiry
50	10.3060.50	10	10	6	Add to enquiry
55	10.3060.55	10	10	6	Add to enquiry
60	10.3060.60	10	10	6	Add to enquiry
65	10.3060.65	10	10	6	Add to enquiry
70	10.3060.70	10	10	6	Add to enquiry
75	10.3060.75	10	10	6	Add to enquiry
80	10.3060.80	10	10	6	Add to enquiry
85	10.3060.85	10	10	6	Add to enquiry
90	10.3060.90	10	10	6	Add to enquiry
95	10.3060.95	10	10	6	Add to enquiry
100	10.3060.100	10	10	6	Add to enquiry

Steel - Zinc Plated

Length (mm)	Part Number	C	B	SW	ADD
5	10.3061.05	5	-	6	Add to enquiry
8	10.3061.08	8	-	6	Add to enquiry
10	10.3061.10	10	-	6	Add to enquiry
12	10.3061.12	12	-	6	Add to enquiry
15	10.3061.15	15	-	6	Add to enquiry
18	10.3061.18	9	9	6	Add to enquiry
20	10.3061.20	10	10	6	Add to enquiry
25	10.3061.25	10	10	6	Add to enquiry
30	10.3061.30	10	10	6	Add to enquiry
35	10.3061.35	10	10	6	Add to enquiry
40	10.3061.40	10	10	6	Add to enquiry
45	10.3061.45	10	10	6	Add to enquiry
50	10.3061.50	10	10	6	Add to enquiry
55	10.3061.55	10	10	6	Add to enquiry
60	10.3061.60	10	10	6	Add to enquiry
65	10.3061.65	10	10	6	Add to enquiry
70	10.3061.70	10	10	6	Add to enquiry
75	10.3061.75	10	10	6	Add to enquiry
80	10.3061.80	10	10	6	Add to enquiry
85	10.3061.85	10	10	6	Add to enquiry
90	10.3061.90	10	10	6	Add to enquiry
95	10.3061.95	10	10	6	Add to enquiry
100	10.3061.100	10	10	6	Add to enquiry

Stainless Steel

Length (mm)	Part Number	C	B	SW	ADD
5	10.3063.05	5	-	5.5	Add to enquiry
8	10.3063.08	8	-	5.5	Add to enquiry
10	10.3063.10	10	-	5.5	Add to enquiry
12	10.3063.12	12	-	5.5	Add to enquiry
15	10.3063.15	7	7	5.5	Add to enquiry
18	10.3063.18	7	7	5.5	Add to enquiry
20	10.3063.20	7	7	5.5	Add to enquiry
25	10.3063.25	7	7	5.5	Add to enquiry
30	10.3063.30	7	7	5.5	Add to enquiry
35	10.3063.35	7	7	5.5	Add to enquiry
40	10.3063.40	7	7	5.5	Add to enquiry
45	10.3063.45	7	7	5.5	Add to enquiry
50	10.3063.50	7	7	5.5	Add to enquiry
55	10.3063.55	7	7	5.5	Add to enquiry
60	10.3063.60	7	7	5.5	Add to enquiry
65	10.3063.65	7	7	5.5	Add to enquiry
70	10.3063.70	7	7	5.5	Add to enquiry

Polyamide

Length (mm)	Part Number	C	B	SW	ADD
5	10.3062.05	5	-	6	Add to enquiry
6	10.3062.06	6	-	6	Add to enquiry
8	10.3062.08	8	-	6	Add to enquiry
10	10.3062.10	10	-	6	Add to enquiry
12	10.3062.12	12	-	6	Add to enquiry
15	10.3062.15	15	-	6	Add to enquiry
18	10.3062.18	9	9	6	Add to enquiry
20	10.3062.20	10	10	6	Add to enquiry
25	10.3062.25	10	10	6	Add to enquiry
30	10.3062.30	10	10	6	Add to enquiry
35	10.3062.35	10	10	6	Add to enquiry
40	10.3062.40	10	10	6	Add to enquiry
45	10.3062.45	10	10	6	Add to enquiry
50	10.3062.50	10	10	6	Add to enquiry
55	10.3062.55	10	10	6	Add to enquiry
60	10.3062.60	10	10	6	Add to enquiry
65	10.3062.65	10	10	6	Add to enquiry

Polyamide with Brass Insert

Length (mm)	Part Number	C	B	SW	ADD
15	10.3065.15	6	6	6	Add to enquiry
18	10.3065.18	6	6	6	Add to enquiry
20	10.3065.20	6	6	6	Add to enquiry
25	10.3065.25	6	6	6	Add to enquiry
30	10.3065.30	6	6	6	Add to enquiry
35	10.3065.35	6	6	6	Add to enquiry
40	10.3065.40	6	6	6	Add to enquiry
45	10.3065.45	6	6	6	Add to enquiry
50	10.3065.50	6	6	6	Add to enquiry
55	10.3065.55	6	6	6	Add to enquiry
60	10.3065.60	6	6	6	Add to enquiry
65	10.3065.65	6	6	6	Add to enquiry

Male - Female

Polyamide Max Temp 110°C

Brass - Nickel Plated

Length (mm)	Part Number	C	B	SW	ADD
5	10.3040.05(8)	3	8	6	Add to enquiry
6	10.3040.06(8)	4	8	6	Add to enquiry
8	10.3040.08(8)	5	8	6	Add to enquiry
10	10.3040.10(8)	6	8	6	Add to enquiry
12	10.3040.12(8)	7	8	6	Add to enquiry
15	10.3040.15(8)	10	8	6	Add to enquiry
18	10.3040.18(8)	10	8	6	Add to enquiry
20	10.3040.20(8)	10	8	6	Add to enquiry
25	10.3040.25(8)	10	8	6	Add to enquiry
30	10.3040.30(8)	10	8	6	Add to enquiry
35	10.3040.35(8)	10	8	6	Add to enquiry
40	10.3040.40(8)	10	8	6	Add to enquiry
45	10.3040.45(8)	10	8	6	Add to enquiry
50	10.3040.50(8)	10	8	6	Add to enquiry
55	10.3040.55(8)	10	8	6	Add to enquiry
60	10.3040.60(8)	10	8	6	Add to enquiry
65	10.3040.65(8)	10	8	6	Add to enquiry
70	10.3040.70(8)	10	8	6	Add to enquiry
75	10.3040.75(8)	10	8	6	Add to enquiry
80	10.3040.80(8)	10	8	6	Add to enquiry
85	10.3040.85(8)	10	8	6	Add to enquiry
90	10.3040.90(8)	10	8	6	Add to enquiry
95	10.3040.95(8)	10	8	6	Add to enquiry
100	10.3040.100(8)	10	8	6	Add to enquiry

Steel - Zinc Plated

Length (mm)	Part Number	C	B	SW	ADD
5	10.3041.05(6)	3	6	6	Add to enquiry
8	10.3041.08(6)	5	6	6	Add to enquiry
10	10.3041.10(6)	6	6	6	Add to enquiry
12	10.3041.12(6)	7	6	6	Add to enquiry
15	10.3041.15(6)	10	6	6	Add to enquiry
18	10.3041.18(6)	10	6	6	Add to enquiry
20	10.3041.20(6)	10	6	6	Add to enquiry
25	10.3041.25(6)	10	6	6	Add to enquiry
30	10.3041.30(6)	10	6	6	Add to enquiry
35	10.3041.35(6)	10	6	6	Add to enquiry
40	10.3041.40(6)	10	6	6	Add to enquiry
45	10.3041.45(6)	10	6	6	Add to enquiry
50	10.3041.50(6)	10	6	6	Add to enquiry
55	10.3041.55(6)	10	6	6	Add to enquiry
60	10.3041.60(6)	10	6	6	Add to enquiry
65	10.3041.65(6)	10	6	6	Add to enquiry
70	10.3041.70(6)	10	6	6	Add to enquiry
75	10.3041.75(6)	10	6	6	Add to enquiry
80	10.3041.80(6)	10	6	6	Add to enquiry
85	10.3041.85(6)	10	6	6	Add to enquiry
90	10.3041.90(6)	10	6	6	Add to enquiry
95	10.3041.95(6)	10	6	6	Add to enquiry
100	10.3041.100(6)	10	6	6	Add to enquiry

Stainless Steel

Length (mm)	Part Number	C	B	SW	ADD
5	10.3043.05(6)	2.5	6	5.5	Add to enquiry
8	10.3043.08(6)	5	6	5.5	Add to enquiry
10	10.3043.10(6)	6	6	5.5	Add to enquiry
12	10.3043.12(6)	7	6	5.5	Add to enquiry
15	10.3043.15(6)	7	6	5.5	Add to enquiry
18	10.3043.18(6)	7	6	5.5	Add to enquiry
20	10.3043.20(6)	7	6	5.5	Add to enquiry
25	10.3043.25(6)	7	6	5.5	Add to enquiry
30	10.3043.30(6)	7	6	5.5	Add to enquiry
35	10.3043.35(6)	7	6	5.5	Add to enquiry
40	10.3043.40(6)	7	6	5.5	Add to enquiry
45	10.3043.45(6)	7	6	5.5	Add to enquiry
50	10.3043.50(6)	7	6	5.5	Add to enquiry
55	10.3043.55(6)	7	6	5.5	Add to enquiry
60	10.3043.60(6)	7	6	5.5	Add to enquiry
65	10.3043.65(6)	7	6	5.5	Add to enquiry
70	10.3043.70(6)	7	6	5.5	Add to enquiry

Polyamide

Length (mm)	Part Number	C	B	SW	ADD
5	10.3042.05(8)	3	8	6	Add to enquiry
6	10.3042.06(8)	4	8	6	Add to enquiry
8	10.3042.08(8)	6	8	6	Add to enquiry
10	10.3042.10(8)	8	8	6	Add to enquiry
12	10.3042.12(8)	10	8	6	Add to enquiry
15	10.3042.15(8)	10	8	6	Add to enquiry
18	10.3042.18(8)	10	8	6	Add to enquiry
20	10.3042.20(8)	10	8	6	Add to enquiry
25	10.3042.25(8)	10	8	6	Add to enquiry
30	10.3042.30(8)	10	8	6	Add to enquiry
35	10.3042.35(8)	10	8	6	Add to enquiry
40	10.3042.40(8)	10	8	6	Add to enquiry
45	10.3042.45(8)	10	8	6	Add to enquiry
50	10.3042.50(8)	10	8	6	Add to enquiry
55	10.3042.55(8)	10	8	6	Add to enquiry
60	10.3042.60(8)	10	8	6	Add to enquiry

Polyamide with Brass Insert

Length (mm)	Part Number	C	B	SW	ADD
15	10.3045.15(8)	6	8	6	Add to enquiry
18	10.3045.18(8)	6	8	6	Add to enquiry
20	10.3045.20(8)	6	8	6	Add to enquiry
25	10.3045.25(8)	6	8	6	Add to enquiry
30	10.3045.30(8)	6	8	6	Add to enquiry
35	10.3045.35(8)	6	8	6	Add to enquiry
40	10.3045.40(8)	6	8	6	Add to enquiry
45	10.3045.45(8)	6	8	6	Add to enquiry
50	10.3045.50(8)	6	8	6	Add to enquiry
55	10.3045.55(8)	6	8	6	Add to enquiry
60	10.3045.60(8)	6	8	6	Add to enquiry
65	10.3045.65(8)	6	8	6	Add to enquiry

Male - Male

Polyamide Max Temp 110°C

Brass - Nickel Plated

Length (mm)	Part Number	C	B	SW	ADD
5	10.3080.05	8	8	6	Add to enquiry
6	10.3080.06	8	8	6	Add to enquiry
8	10.3080.08	8	8	6	Add to enquiry
10	10.3080.10	8	8	6	Add to enquiry
12	10.3080.12	8	8	6	Add to enquiry
15	10.3080.15	8	8	6	Add to enquiry
18	10.3080.18	8	8	6	Add to enquiry
20	10.3080.20	8	8	6	Add to enquiry
25	10.3080.25	8	8	6	Add to enquiry
30	10.3080.30	8	8	6	Add to enquiry
35	10.3080.35	8	8	6	Add to enquiry
40	10.3080.40	8	8	6	Add to enquiry
45	10.3080.45	8	8	6	Add to enquiry
50	10.3080.50	8	8	6	Add to enquiry
55	10.3080.55	8	8	6	Add to enquiry
60	10.3080.60	8	8	6	Add to enquiry
65	10.3080.65	8	8	6	Add to enquiry

Steel - Zinc Plated

Length (mm)	Part Number	C	B	SW	ADD
5	10.3081.05	6	6	6	Add to enquiry
8	10.3081.08	6	6	6	Add to enquiry
10	10.3081.10	6	6	6	Add to enquiry
12	10.3081.12	6	6	6	Add to enquiry
15	10.3081.15	6	6	6	Add to enquiry
18	10.3081.18	6	6	6	Add to enquiry
20	10.3081.20	6	6	6	Add to enquiry
25	10.3081.25	6	6	6	Add to enquiry
30	10.3081.30	6	6	6	Add to enquiry
35	10.3081.35	6	6	6	Add to enquiry
40	10.3081.40	6	6	6	Add to enquiry
45	10.3081.45	6	6	6	Add to enquiry
50	10.3081.50	6	6	6	Add to enquiry
55	10.3081.55	6	6	6	Add to enquiry
60	10.3081.60	6	6	6	Add to enquiry
65	10.3081.65	6	6	6	Add to enquiry
70	10.3081.70	6	6	6	Add to enquiry
75	10.3081.75	6	6	6	Add to enquiry
80	10.3081.80	6	6	6	Add to enquiry
85	10.3081.85	6	6	6	Add to enquiry
90	10.3081.90	6	6	6	Add to enquiry
95	10.3081.95	6	6	6	Add to enquiry
100	10.3081.100	6	6	6	Add to enquiry

Stainless Steel

Length (mm)	Part Number	C	B	SW	ADD
5	10.3083.05	6	6	5.5	Add to enquiry
8	10.3083.08	6	6	5.5	Add to enquiry
10	10.3083.10	6	6	5.5	Add to enquiry
12	10.3083.12	6	6	5.5	Add to enquiry
15	10.3083.15	6	6	5.5	Add to enquiry
18	10.3083.18	6	6	5.5	Add to enquiry
20	10.3083.20	6	6	5.5	Add to enquiry
25	10.3083.25	6	6	5.5	Add to enquiry
30	10.3083.30	6	6	5.5	Add to enquiry
35	10.3083.35	6	6	5.5	Add to enquiry
40	10.3083.40	6	6	5.5	Add to enquiry
45	10.3083.45	6	6	5.5	Add to enquiry
50	10.3083.50	6	6	5.5	Add to enquiry
55	10.3083.55	6	6	5.5	Add to enquiry
60	10.3083.60	6	6	5.5	Add to enquiry
65	10.3083.65	6	6	5.5	Add to enquiry
70	10.3083.70	6	6	5.5	Add to enquiry

Polyamide with Brass Insert

Length (mm)	Part Number	C	B	SW	ADD
15	10.3085.15	8	8	6	Add to enquiry
18	10.3085.18	8	8	6	Add to enquiry
20	10.3085.20	8	8	6	Add to enquiry
25	10.3085.25	8	8	6	Add to enquiry
30	10.3085.30	8	8	6	Add to enquiry
35	10.3085.35	8	8	6	Add to enquiry
40	10.3085.40	8	8	6	Add to enquiry
45	10.3085.45	8	8	6	Add to enquiry
50	10.3085.50	8	8	6	Add to enquiry
55	10.3085.55	8	8	6	Add to enquiry
60	10.3085.60	8	8	6	Add to enquiry
65	10.3085.65	8	8	6	Add to enquiry

Self Tapping (Group 1)

Brass - Nickel Plated

Length (mm)	Part Number	C	B	SW	D1	D2	ADD
8	10.3052.08	5	6	5.5	2.8	2.1	Add to enquiry
10	10.3052.10	6	6	5.5	2.8	2.1	Add to enquiry
12	10.3052.12	7	6	5.5	2.8	2.1	Add to enquiry
15	10.3052.15	10	6	5.5	2.8	2.1	Add to enquiry
20	10.3052.20	10	6	5.5	2.8	2.1	Add to enquiry

Steel Zinc Plated

Length (mm)	Part Number	C	B	SW	D1	D2	ADD
8	10.3053.08	5	6	5.5	2.8	2.1	Add to enquiry
10	10.3053.10	6	6	5.5	2.8	2.1	Add to enquiry
12	10.3053.12	7	6	5.5	2.8	2.1	Add to enquiry
15	10.3053.15	10	6	5.5	2.8	2.1	Add to enquiry
20	10.3053.20	10	6	5.5	2.8	2.1	Add to enquiry

Self Tapping (Group 2)

Brass - Nickel Plated

Length (mm)	Part Number	C	B	SW	D1	D2	ADD
8	10.3054.08	5	6	5.5	3.2	2.3	Add to enquiry
10	10.3054.10	6	6	5.5	3.2	2.3	Add to enquiry
12	10.3054.12	7	6	5.5	3.2	2.3	Add to enquiry
15	10.3054.15	10	6	5.5	3.2	2.3	Add to enquiry
20	10.3054.20	10	6	5.5	3.2	2.3	Add to enquiry

Steel Zinc Plated

Length (mm)	Part Number	C	B	SW	D1	D2	ADD
8	10.3055.08	5	6	5.5	3.2	2.3	Add to enquiry
10	10.3055.10	6	6	5.5	3.2	2.3	Add to enquiry
12	10.3055.12	7	6	5.5	3.2	2.3	Add to enquiry
15	10.3055.15	10	6	5.5	3.2	2.3	Add to enquiry
20	10.3055.20	10	6	5.5	3.2	2.3	Add to enquiry

Self Tapping (Group 3)

Brass - Nickel Plated

Length (mm)	Part Number	C	B	SW	D1	D2	ADD
8	10.3056.08	5	7	6	3.4	2.6	Add to enquiry
10	10.3056.10	6	7	6	3.4	2.6	Add to enquiry
12	10.3056.12	7	7	6	3.4	2.6	Add to enquiry
15	10.3056.15	10	7	6	3.4	2.6	Add to enquiry
20	10.3056.20	10	7	6	3.4	2.6	Add to enquiry

Steel Zinc Plated

Length (mm)	Part Number	C	B	SW	D1	D2	ADD
8	10.3057.08	5	7	6	3.4	2.6	Add to enquiry
10	10.3057.10	6	7	6	3.4	2.6	Add to enquiry
12	10.3057.12	7	7	6	3.4	2.6	Add to enquiry
15	10.3057.15	10	7	6	3.4	2.6	Add to enquiry
20	10.3057.20	10	7	6	3.4	2.6	Add to enquiry

Spacer Sleeves

Aluminium

Length (mm)	Part Number	D	S	ADD
4	10x40040040.10	4	0.4	Add to enquiry
8	10x40080040.10	4	0.4	Add to enquiry
12	10x40120040.10	4	0.4	Add to enquiry
2	10x50020075.10	5	0.75	Add to enquiry
2.2	10x50022075.10	5	0.75	Add to enquiry
2.5	10x50025075.10	5	0.75	Add to enquiry
3	10x50030075.10	5	0.75	Add to enquiry
3.5	10x50035075.10	5	0.75	Add to enquiry
3.7	10x50037075.10	5	0.75	Add to enquiry
4	10x50040075.10	5	0.75	Add to enquiry
5	10x50050075.10	5	0.75	Add to enquiry
5.5	10x50055075.10	5	0.75	Add to enquiry
6	10x50060075.10	5	0.75	Add to enquiry
6.5	10x50065075.10	5	0.75	Add to enquiry
7	10x50070075.10	5	0.75	Add to enquiry
7.2	10x50072075.10	5	0.75	Add to enquiry
8	10x50080075.10	5	0.75	Add to enquiry
9	10x50090075.10	5	0.75	Add to enquiry
9.5	10x50095075.10	5	0.75	Add to enquiry
10	10x50100075.10	5	0.75	Add to enquiry
11	10x50110075.10	5	0.75	Add to enquiry
11.5	10x50115075.10	5	0.75	Add to enquiry
12	10x50120075.10	5	0.75	Add to enquiry
13	10x50130075.10	5	0.75	Add to enquiry
14	10x50140075.10	5	0.75	Add to enquiry
15	10x50150075.10	5	0.75	Add to enquiry
16	10x50160075.10	5	0.75	Add to enquiry
17	10x50170075.10	5	0.75	Add to enquiry
18	10x50180075.10	5	0.75	Add to enquiry
20	10x50200075.10	5	0.75	Add to enquiry
22	10x50220075.10	5	0.75	Add to enquiry
23	10x50230075.10	5	0.75	Add to enquiry
24	10x50240075.10	5	0.75	Add to enquiry
25	10x50250075.10	5	0.75	Add to enquiry
26.5	10x50265075.10	5	0.75	Add to enquiry
30	10x50300075.10	5	0.75	Add to enquiry
35	10x50350075.10	5	0.75	Add to enquiry
40	10x50400075.10	5	0.75	Add to enquiry
43	10x50430075.10	5	0.75	Add to enquiry
50	10x50500075.10	5	0.75	Add to enquiry
1	10x55010110.10	5.5	1.1	Add to enquiry
1.5	10x55015110.10	5.5	1.1	Add to enquiry
2	10x55020110.10	5.5	1.1	Add to enquiry
2.5	10x55025110.10	5.5	1.1	Add to enquiry
3	10x55030110.10	5.5	1.1	Add to enquiry
3.5	10x55035110.10	5.5	1.1	Add to enquiry
4	10x55040110.10	5.5	1.1	Add to enquiry
4.2	10x55042110.10	5.5	1.1	Add to enquiry
4.5	10x55045110.10	5.5	1.1	Add to enquiry
4.6	10x55046110.10	5.5	1.1	Add to enquiry
4.7	10x55047110.10	5.5	1.1	Add to enquiry
5	10x55050110.10	5.5	1.1	Add to enquiry
5.3	10x55053110.10	5.5	1.1	Add to enquiry
5.5	10x55055110.10	5.5	1.1	Add to enquiry
5.7	10x55057110.10	5.5	1.1	Add to enquiry
6	10x55060110.10	5.5	1.1	Add to enquiry
6.4	10x55064110.10	5.5	1.1	Add to enquiry
6.5	10x55065110.10	5.5	1.1	Add to enquiry
6.6	10x55066110.10	5.5	1.1	Add to enquiry
7	10x55070110.10	5.5	1.1	Add to enquiry
7.5	10x55075110.10	5.5	1.1	Add to enquiry
8	10x55080110.10	5.5	1.1	Add to enquiry
8.6	10x55086110.10	5.5	1.1	Add to enquiry
9	10x55090110.10	5.5	1.1	Add to enquiry
9.5	10x55095110.10	5.5	1.1	Add to enquiry
10	10x55100110.10	5.5	1.1	Add to enquiry
10.5	10x55105110.10	5.5	1.1	Add to enquiry
10.7	10x55107110.10	5.5	1.1	Add to enquiry
11	10x55110110.10	5.5	1.1	Add to enquiry
11.5	10x55115110.10	5.5	1.1	Add to enquiry
11.6	10x55116110.10	5.5	1.1	Add to enquiry
12	10x55120110.10	5.5	1.1	Add to enquiry
12.5	10x55125110.10	5.5	1.1	Add to enquiry
13	10x55130110.10	5.5	1.1	Add to enquiry
13.5	10x55135110.10	5.5	1.1	Add to enquiry
14	10x55140110.10	5.5	1.1	Add to enquiry
15	10x55150110.10	5.5	1.1	Add to enquiry
16	10x55160110.10	5.5	1.1	Add to enquiry
18	10x55180110.10	5.5	1.1	Add to enquiry
19	10x55190110.10	5.5	1.1	Add to enquiry
20	10x55200110.10	5.5	1.1	Add to enquiry
22	10x55220110.10	5.5	1.1	Add to enquiry
24	10x55240110.10	5.5	1.1	Add to enquiry
25	10x55250110.10	5.5	1.1	Add to enquiry
26.8	10x55268110.10	5.5	1.1	Add to enquiry
27.5	10x55275110.10	5.5	1.1	Add to enquiry
30	10x55300110.10	5.5	1.1	Add to enquiry
32	10x55320110.10	5.5	1.1	Add to enquiry
38	10x55380110.10	5.5	1.1	Add to enquiry
40	10x55400110.10	5.5	1.1	Add to enquiry
85	10x55850110.10	5.5	1.1	Add to enquiry
5	10x60050145.10	6	1.45	Add to enquiry

Polystyrene, Black

Length (mm)	Part Number	D1	D	ADD
10	10x05010032.ps	3.2	5	Add to enquiry
3	10x07003036.ps	3.6	7	Add to enquiry
4	10x07004036.ps	3.6	7	Add to enquiry
5	10x07005036.ps	3.6	7	Add to enquiry
6	10x07006036.ps	3.6	7	Add to enquiry
6.5	10x07006536.ps	3.6	7	Add to enquiry
7	10x07007036.ps	3.6	7	Add to enquiry
8	10x07008036.ps	3.6	7	Add to enquiry
9	10x07009036.ps	3.6	7	Add to enquiry
10	10x07010036.ps	3.6	7	Add to enquiry
11	10x07011036.ps	3.6	7	Add to enquiry
12	10x07012036.ps	3.6	7	Add to enquiry
13	10x07013036.ps	3.6	7	Add to enquiry
14	10x07014036.ps	3.6	7	Add to enquiry
15	10x07015036.ps	3.6	7	Add to enquiry
16	10x07016036.ps	3.6	7	Add to enquiry
17	10x07017036.ps	3.6	7	Add to enquiry
18	10x07018036.ps	3.6	7	Add to enquiry
19	10x07019036.ps	3.6	7	Add to enquiry
20	10x07020036.ps	3.6	7	Add to enquiry
25	10x07025036.ps	3.6	7	Add to enquiry
27	10x07027036.ps	3.6	7	Add to enquiry
30	10x07030036.ps	3.6	7	Add to enquiry
35	10x07035036.ps	3.6	7	Add to enquiry

Polyamid, Black

Length (mm)	Part Number	D1	D	ADD
3	10x06003032.pa	3.2	6	Add to enquiry
4.5	10x06004532.pa	3.2	6	Add to enquiry
5	10x06005032.pa	3.2	6	Add to enquiry
5.6	10x06005632.pa	3.2	6	Add to enquiry
6.4	10x06006432.pa	3.2	6	Add to enquiry
7	10x06007032.pa	3.2	6	Add to enquiry
7.4	10x06007432.pa	3.2	6	Add to enquiry
8	10x06008032.pa	3.2	6	Add to enquiry
9	10x06009232.pa	3.2	6	Add to enquiry
10	10x06010032.pa	3.2	6	Add to enquiry
15	10x06015032.pa	3.2	6	Add to enquiry
20	10x06020032.pa	3.2	6	Add to enquiry
30	10x06030032.pa	3.2	6	Add to enquiry

Polycarbonate, Grey

Length (mm)	Part Number	D1	D	ADD
2	10x07002036.pc	3.6	7	Add to enquiry
3	10x07003036.pc	3.6	7	Add to enquiry
5	10x07005036.pc	3.6	7	Add to enquiry
6	10x07006036.pc	3.6	7	Add to enquiry
7	10x07007036.pc	3.6	7	Add to enquiry
8	10x07008036.pc	3.6	7	Add to enquiry
10	10x07010036.pc	3.6	7	Add to enquiry
15	10x07015036.pc	3.6	7	Add to enquiry
18	10x07018036.pc	3.6	7	Add to enquiry
18.5	10x07018536.pc	3.6	7	Add to enquiry
20	10x07020036.pc	3.6	7	Add to enquiry
25	10x07025036.pc	3.6	7	Add to enquiry
28.8	10x07028836.pc	3.6	7	Add to enquiry
30	10x07030036.pc	3.6	7	Add to enquiry
35	10x07035036.pc	3.6	7	Add to enquiry

M4

Female - Female

Polyamide Max Temp 110°C

Brass - Nickel Plated

Length (mm)	Part Number	C	B	SW	ADD
5	10.4060.05	5	-	7	Add to enquiry
6	10.4060.06	6	-	7	Add to enquiry
8	10.4060.08	8	-	7	Add to enquiry
10	10.4060.10	10	-	7	Add to enquiry
12	10.4060.12	12	-	7	Add to enquiry
15	10.4060.15	15	-	7	Add to enquiry
18	10.4060.18	9	9	7	Add to enquiry
20	10.4060.20	10	10	7	Add to enquiry
25	10.4060.25	10	10	7	Add to enquiry
30	10.4060.30	10	10	7	Add to enquiry
35	10.4060.35	10	10	7	Add to enquiry
40	10.4060.40	10	10	7	Add to enquiry
45	10.4060.45	10	10	7	Add to enquiry
50	10.4060.50	10	10	7	Add to enquiry
55	10.4060.55	10	10	7	Add to enquiry
60	10.4060.60	10	10	7	Add to enquiry
65	10.4060.65	10	10	7	Add to enquiry
70	10.4060.70	10	10	7	Add to enquiry
75	10.4060.75	10	10	7	Add to enquiry
80	10.4060.80	10	10	7	Add to enquiry
85	10.4060.85	10	10	7	Add to enquiry
90	10.4060.90	10	10	7	Add to enquiry
95	10.4060.95	10	10	7	Add to enquiry
100	10.4060.100	10	10	7	Add to enquiry

Steel - Zinc Plated

Length (mm)	Part Number	C	B	SW	ADD
5	10.4061.05	5	-	8	Add to enquiry
8	10.4061.08	8	-	8	Add to enquiry
10	10.4061.10	10	-	8	Add to enquiry
12	10.4061.12	12	-	8	Add to enquiry
15	10.4061.15	15	-	8	Add to enquiry
18	10.4061.18	9	9	8	Add to enquiry
20	10.4061.20	10	10	8	Add to enquiry
25	10.4061.25	10	10	8	Add to enquiry
30	10.4061.30	10	10	8	Add to enquiry
35	10.4061.35	10	10	8	Add to enquiry
40	10.4061.40	10	10	8	Add to enquiry
45	10.4061.45	10	10	8	Add to enquiry
50	10.4061.50	10	10	8	Add to enquiry
55	10.4061.55	10	10	8	Add to enquiry
60	10.4061.60	10	10	8	Add to enquiry
65	10.4061.65	10	10	8	Add to enquiry
70	10.4061.70	10	10	8	Add to enquiry
75	10.4061.75	10	10	8	Add to enquiry
80	10.4061.80	10	10	8	Add to enquiry
85	10.4061.85	10	10	8	Add to enquiry
90	10.4061.90	10	10	8	Add to enquiry
95	10.4061.95	10	10	8	Add to enquiry
100	10.4061.100	10	10	8	Add to enquiry

Stainless Steel

Length (mm)	Part Number	C	B	SW	ADD
5	10.4063.05	5	-	7	Add to enquiry
8	10.4063.08	8	-	7	Add to enquiry
10	10.4063.10	10	-	7	Add to enquiry
12	10.4063.12	12	-	7	Add to enquiry
15	10.4063.15	15	-	7	Add to enquiry
18	10.4063.18	9	9	7	Add to enquiry
20	10.4063.20	9	9	7	Add to enquiry
25	10.4063.25	9	9	7	Add to enquiry
30	10.4063.30	9	9	7	Add to enquiry
35	10.4063.35	9	9	7	Add to enquiry
40	10.4063.40	9	9	7	Add to enquiry
45	10.4063.45	9	9	7	Add to enquiry
50	10.4063.50	9	9	7	Add to enquiry
55	10.4063.55	9	9	7	Add to enquiry
60	10.4063.60	9	9	7	Add to enquiry
65	10.4063.65	9	9	7	Add to enquiry
70	10.4063.70	9	9	7	Add to enquiry
75	10.4063.75	9	9	7	Add to enquiry
80	10.4063.80	9	9	7	Add to enquiry
85	10.4063.85	9	9	7	Add to enquiry
90	10.4063.90	9	9	7	Add to enquiry
95	10.4063.95	9	9	7	Add to enquiry
100	10.4063.100	9	9	7	Add to enquiry

Polyamide

Length (mm)	Part Number	C	B	SW	ADD
5	10.4062.05	5	-	8	Add to enquiry
6	10.4062.06	6	-	8	Add to enquiry
8	10.4062.08	8	-	8	Add to enquiry
10	10.4062.10	10	-	8	Add to enquiry
12	10.4062.12	12	-	8	Add to enquiry
15	10.4062.15	15	-	8	Add to enquiry
18	10.4062.18	18	-	8	Add to enquiry
20	10.4062.20	20	-	8	Add to enquiry
25	10.4062.25	10	10	8	Add to enquiry
30	10.4062.30	10	10	8	Add to enquiry
35	10.4062.35	10	10	8	Add to enquiry
40	10.4062.40	10	10	8	Add to enquiry
45	10.4062.45	10	10	8	Add to enquiry
50	10.4062.50	10	10	8	Add to enquiry
55	10.4062.55	10	10	8	Add to enquiry
60	10.4062.60	10	10	8	Add to enquiry
65	10.4062.65	10	10	8	Add to enquiry

Polyamide with Brass Insert

Length (mm)	Part Number	C	B	SW	ADD
15	10.4065.15	6	6	8	Add to enquiry
18	10.4065.18	6	6	8	Add to enquiry
20	10.4065.20	6	6	8	Add to enquiry
25	10.4065.25	6	6	8	Add to enquiry
30	10.4065.30	6	6	8	Add to enquiry
35	10.4065.35	6	6	8	Add to enquiry
40	10.4065.40	6	6	8	Add to enquiry
45	10.4065.45	6	6	8	Add to enquiry
50	10.4065.50	6	6	8	Add to enquiry
55	10.4065.55	6	6	8	Add to enquiry
60	10.4065.60	6	6	8	Add to enquiry
65	10.4065.65	6	6	8	Add to enquiry

Male - Female

Polyamide Max Temp 110°C

Brass - Nickel Plated

Length (mm)	Part Number	C	B	SW	ADD
5	10.4040.05(8)	3	8	7	Add to enquiry
6	10.4040.06(8)	4	8	7	Add to enquiry
8	10.4040.08(8)	5	8	7	Add to enquiry
10	10.4040.10(8)	6	8	7	Add to enquiry
12	10.4040.12(8)	7	8	7	Add to enquiry
15	10.4040.15(8)	10	8	7	Add to enquiry
18	10.4040.18(8)	10	8	7	Add to enquiry
20	10.4040.20(8)	10	8	7	Add to enquiry
25	10.4040.25(8)	10	8	7	Add to enquiry
30	10.4040.30(8)	10	8	7	Add to enquiry
35	10.4040.35(8)	10	8	7	Add to enquiry
40	10.4040.40(8)	10	8	7	Add to enquiry
45	10.4040.45(8)	10	8	7	Add to enquiry
50	10.4040.50(8)	10	8	7	Add to enquiry
55	10.4040.55(8)	10	8	7	Add to enquiry
60	10.4040.60(8)	10	8	7	Add to enquiry
65	10.4040.65(8)	10	8	7	Add to enquiry
70	10.4040.70(8)	10	8	7	Add to enquiry
75	10.4040.75(8)	10	8	7	Add to enquiry
80	10.4040.80(8)	10	8	7	Add to enquiry
85	10.4040.85(8)	10	8	7	Add to enquiry
90	10.4040.90(8)	10	8	7	Add to enquiry
95	10.4040.95(8)	10	8	7	Add to enquiry
100	10.4040.100(8)	10	8	7	Add to enquiry

Steel - Zinc Plated

Length (mm)	Part Number	C	B	SW	ADD
5	10.4041.05(8)	3	8	8	Add to enquiry
8	10.4041.08(8)	5	8	8	Add to enquiry
10	10.4041.10(8)	6	8	8	Add to enquiry
12	10.4041.12(8)	7	8	8	Add to enquiry
15	10.4041.15(8)	10	8	8	Add to enquiry
18	10.4041.18(8)	10	8	8	Add to enquiry
20	10.4041.20(8)	10	8	8	Add to enquiry
25	10.4041.25(8)	10	8	8	Add to enquiry
30	10.4041.30(8)	10	8	8	Add to enquiry
35	10.4041.35(8)	10	8	8	Add to enquiry
40	10.4041.40(8)	10	8	8	Add to enquiry
45	10.4041.45(8)	10	8	8	Add to enquiry
50	10.4041.50(8)	10	8	8	Add to enquiry
55	10.4041.55(8)	10	8	8	Add to enquiry
60	10.4041.60(8)	10	8	8	Add to enquiry
65	10.4041.65(8)	10	8	8	Add to enquiry
70	10.4041.70(8)	10	8	8	Add to enquiry
75	10.4041.75(8)	10	8	8	Add to enquiry
80	10.4041.80(8)	10	8	8	Add to enquiry
85	10.4041.85(8)	10	8	8	Add to enquiry
90	10.4041.90(8)	10	8	8	Add to enquiry
95	10.4041.95(8)	10	8	8	Add to enquiry
100	10.4041.100(8)	10	8	8	Add to enquiry

Stainless Steel

Length (mm)	Part Number	C	B	SW	ADD
8	10.4043.08(8)	5	8	7	Add to enquiry
10	10.4043.10(8)	6	8	7	Add to enquiry
12	10.4043.12(8)	8	8	7	Add to enquiry
15	10.4043.15(8)	9	8	7	Add to enquiry
18	10.4043.18(8)	9	8	7	Add to enquiry
20	10.4043.20(8)	9	8	7	Add to enquiry
25	10.4043.25(8)	9	8	7	Add to enquiry
30	10.4043.30(8)	9	8	7	Add to enquiry
35	10.4043.35(8)	9	8	7	Add to enquiry
40	10.4043.40(8)	9	8	7	Add to enquiry
45	10.4043.45(8)	9	8	7	Add to enquiry
50	10.4043.50(8)	9	8	7	Add to enquiry
55	10.4043.55(8)	9	8	7	Add to enquiry
60	10.4043.60(8)	9	8	7	Add to enquiry
65	10.4043.65(8)	9	8	7	Add to enquiry
70	10.4043.70(8)	9	8	7	Add to enquiry
75	10.4043.75(8)	9	8	7	Add to enquiry
80	10.4043.80(8)	9	8	7	Add to enquiry
85	10.4043.85(8)	9	8	7	Add to enquiry
90	10.4043.90(8)	9	8	7	Add to enquiry
95	10.4043.95(8)	9	8	7	Add to enquiry
100	10.4043.100(8)	9	8	7	Add to enquiry

Polyamide

Length (mm)	Part Number	C	B	SW	ADD
5	10.4042.05(8)	3	8	8	Add to enquiry
6	10.4042.06(8)	4	8	8	Add to enquiry
8	10.4042.08(8)	6	8	8	Add to enquiry
10	10.4042.10(8)	8	8	8	Add to enquiry
12	10.4042.12(8)	10	8	8	Add to enquiry
15	10.4042.15(8)	10	8	8	Add to enquiry
18	10.4042.18(8)	10	8	8	Add to enquiry
20	10.4042.20(8)	10	8	8	Add to enquiry
25	10.4042.25(8)	10	8	8	Add to enquiry
30	10.4042.30(8)	10	8	8	Add to enquiry
35	10.4042.35(8)	10	8	8	Add to enquiry
40	10.4042.40(8)	10	8	8	Add to enquiry
45	10.4042.45(8)	10	8	8	Add to enquiry
50	10.4042.50(8)	10	8	8	Add to enquiry
55	10.4042.55(8)	10	8	8	Add to enquiry
60	10.4042.60(8)	10	8	8	Add to enquiry
65	10.4042.65(8)	10	8	8	Add to enquiry
70	10.4042.70(8)	10	8	8	Add to enquiry

Polyamide with Brass Insert

Length (mm)	Part Number	C	B	SW	ADD
15	10.4045.15(8)	6	8	8	Add to enquiry
18	10.4045.18(8)	6	8	8	Add to enquiry
20	10.4045.20(8)	6	8	8	Add to enquiry
25	10.4045.25(8)	6	8	8	Add to enquiry
30	10.4045.30(8)	6	8	8	Add to enquiry
35	10.4045.35(8)	6	8	8	Add to enquiry
40	10.4045.40(8)	6	8	8	Add to enquiry
45	10.4045.45(8)	6	8	8	Add to enquiry
50	10.4045.50(8)	6	8	8	Add to enquiry
55	10.4045.55(8)	6	8	8	Add to enquiry
60	10.4045.60(8)	6	8	8	Add to enquiry
65	10.4045.65(8)	6	8	8	Add to enquiry

Male - Male

Polyamide Max Temp 110°C

Brass - Nickel Plated

Length (mm)	Part Number	C	B	SW	ADD
5	10.4080.05	8	8	7	Add to enquiry
6	10.4080.06	8	8	7	Add to enquiry
8	10.4080.08	8	8	7	Add to enquiry
10	10.4080.10	8	8	7	Add to enquiry
12	10.4080.12	8	8	7	Add to enquiry
15	10.4080.15	8	8	7	Add to enquiry
18	10.4080.18	8	8	7	Add to enquiry
20	10.4080.20	8	8	7	Add to enquiry
25	10.4080.25	8	8	7	Add to enquiry
30	10.4080.30	8	8	7	Add to enquiry
35	10.4080.35	8	8	7	Add to enquiry
40	10.4080.40	8	8	7	Add to enquiry
45	10.4080.45	8	8	7	Add to enquiry
50	10.4080.50	8	8	7	Add to enquiry
55	10.4080.55	8	8	7	Add to enquiry
60	10.4080.60	8	8	7	Add to enquiry
65	10.4080.65	8	8	7	Add to enquiry
70	10.4080.70	8	8	7	Add to enquiry
75	10.4080.75	8	8	7	Add to enquiry
80	10.4080.80	8	8	7	Add to enquiry
85	10.4080.85	8	8	7	Add to enquiry
90	10.4080.90	8	8	7	Add to enquiry
95	10.4080.95	8	8	7	Add to enquiry
100	10.4080.100	8	8	7	Add to enquiry

Steel - Zinc Plated

Length (mm)	Part Number	C	B	SW	ADD
5	10.4081.05	8	8	8	Add to enquiry
8	10.4081.08	8	8	8	Add to enquiry
10	10.4081.10	8	8	8	Add to enquiry
12	10.4081.12	8	8	8	Add to enquiry
15	10.4081.15	8	8	8	Add to enquiry
18	10.4081.18	8	8	8	Add to enquiry
20	10.4081.20	8	8	8	Add to enquiry
25	10.4081.25	8	8	8	Add to enquiry
30	10.4081.30	8	8	8	Add to enquiry
35	10.4081.35	8	8	8	Add to enquiry
40	10.4081.40	8	8	8	Add to enquiry
45	10.4081.45	8	8	8	Add to enquiry
50	10.4081.50	8	8	8	Add to enquiry
55	10.4081.55	8	8	8	Add to enquiry
60	10.4081.60	8	8	8	Add to enquiry
65	10.4081.65	8	8	8	Add to enquiry
70	10.4081.70	8	8	8	Add to enquiry
75	10.4081.75	8	8	8	Add to enquiry
80	10.4081.80	8	8	8	Add to enquiry
85	10.4081.85	8	8	8	Add to enquiry
90	10.4081.90	8	8	8	Add to enquiry
95	10.4081.95	8	8	8	Add to enquiry
100	10.4081.100	8	8	8	Add to enquiry

Stainless Steel

Length (mm)	Part Number	C	B	SW	ADD
8	10.4083.08	8	8	7	Add to enquiry
10	10.4083.10	8	8	7	Add to enquiry
12	10.4083.12	8	8	7	Add to enquiry
15	10.4083.15	8	8	7	Add to enquiry
18	10.4083.18	8	8	7	Add to enquiry
20	10.4083.20	8	8	7	Add to enquiry
25	10.4083.25	8	8	7	Add to enquiry
30	10.4083.30	8	8	7	Add to enquiry
35	10.4083.35	8	8	7	Add to enquiry
40	10.4083.40	8	8	7	Add to enquiry
45	10.4083.45	8	8	7	Add to enquiry
50	10.4083.50	8	8	7	Add to enquiry
55	10.4083.55	8	8	7	Add to enquiry
60	10.4083.60	8	8	7	Add to enquiry
65	10.4083.65	8	8	7	Add to enquiry
70	10.4083.70	8	8	7	Add to enquiry
75	10.4083.75	8	8	7	Add to enquiry
80	10.4083.80	8	8	7	Add to enquiry
85	10.4083.85	8	8	7	Add to enquiry
90	10.4083.90	8	8	7	Add to enquiry
95	10.4083.95	8	8	7	Add to enquiry
100	10.4083.100	8	8	7	Add to enquiry

Polyamide with Brass Insert

Length (mm)	Part Number	C	B	SW	ADD
15	10.4085.15	8	8	8	Add to enquiry
18	10.4085.18	8	8	8	Add to enquiry
20	10.4085.20	8	8	8	Add to enquiry
25	10.4085.25	8	8	8	Add to enquiry
30	10.4085.30	8	8	8	Add to enquiry
35	10.4085.35	8	8	8	Add to enquiry
40	10.4085.40	8	8	8	Add to enquiry
45	10.4085.45	8	8	8	Add to enquiry
50	10.4085.50	8	8	8	Add to enquiry
55	10.4085.55	8	8	8	Add to enquiry
60	10.4085.60	8	8	8	Add to enquiry
65	10.4085.65	8	8	8	Add to enquiry

Self Tapping

Brass - Nickel Plated

Length (mm)	Part Number	C	B	SW	D1	D2	ADD
8	10.4053.08	5	8	7	4.1	3	Add to enquiry
10	10.4053.10	6	8	7	4.1	3	Add to enquiry
12	10.4053.12	7	8	7	4.1	3	Add to enquiry
15	10.4053.15	10	8	7	4.1	3	Add to enquiry
20	10.4053.20	10	8	7	4.1	3	Add to enquiry

Steel Zinc Plated

Length (mm)	Part Number	C	B	SW	D1	D2	ADD
8	10.4054.08	5	8	7	4.1	3	Add to enquiry
10	10.4054.10	6	8	7	4.1	3	Add to enquiry
12	10.4054.12	7	8	7	4.1	3	Add to enquiry
15	10.4054.15	10	8	7	4.1	3	Add to enquiry
20	10.4054.20	10	8	7	4.1	3	Add to enquiry

Spacer Sleeves

Aluminium

Length (mm)	Part Number	D	S	ADD
30	10x50300035.10	5	0.35	Add to enquiry
6	10x50060050.10	5	0.5	Add to enquiry
10	10x50100050.10	5	0.5	Add to enquiry
14	10x50140050.10	5	0.5	Add to enquiry
26	10x50260050.10	5	0.5	Add to enquiry
1.5	10x60015090.10	6	0.9	Add to enquiry
2	10x60020090.10	6	0.9	Add to enquiry
2.5	10x60025090.10	6	0.9	Add to enquiry
2.6	10x60026090.10	6	0.9	Add to enquiry
3	10x60030090.10	6	0.9	Add to enquiry
3.5	10x60035090.10	6	0.9	Add to enquiry
4	10x60040090.10	6	0.9	Add to enquiry
4.5	10x60045090.10	6	0.9	Add to enquiry
5	10x60050090.10	6	0.9	Add to enquiry
5.3	10x60053090.10	6	0.9	Add to enquiry
5.5	10x60055090.10	6	0.9	Add to enquiry
6	10x60060090.10	6	0.9	Add to enquiry
6.5	10x60065090.10	6	0.9	Add to enquiry
7	10x60070090.10	6	0.9	Add to enquiry
8	10x60080090.10	6	0.9	Add to enquiry
9	10x60090090.10	6	0.9	Add to enquiry
10	10x60100090.10	6	0.9	Add to enquiry
11	10x60110090.10	6	0.9	Add to enquiry
11.7	10x60117090.10	6	0.9	Add to enquiry
12	10x60120090.10	6	0.9	Add to enquiry
14	10x60140090.10	6	0.9	Add to enquiry
15	10x60150090.10	6	0.9	Add to enquiry
16	10x60160090.10	6	0.9	Add to enquiry
17	10x60170090.10	6	0.9	Add to enquiry
18	10x60180090.10	6	0.9	Add to enquiry
19	10x60190090.10	6	0.9	Add to enquiry
20	10x60200090.10	6	0.9	Add to enquiry
23	10x60230090.10	6	0.9	Add to enquiry
25	10x60250090.10	6	0.9	Add to enquiry
28	10x60280090.10	6	0.9	Add to enquiry
30	10x60300090.10	6	0.9	Add to enquiry
35	10x60350090.10	6	0.9	Add to enquiry
37	10x60370090.10	6	0.9	Add to enquiry
40	10x60400090.10	6	0.9	Add to enquiry
2	10x70020135.10	7	1.35	Add to enquiry
2.5	10x70025135.10	7	1.35	Add to enquiry
3	10x70030140.10	7	1.4	Add to enquiry
3.5	10x70035135.10	7	1.35	Add to enquiry
4	10x70040140.10	7	1.4	Add to enquiry
5	10x70050140.10	7	1.4	Add to enquiry
5.2	10x70052135.10	7	1.35	Add to enquiry
6	10x70060140.10	7	1.4	Add to enquiry
7	10x70070140.10	7	1.4	Add to enquiry
7.2	10x70072140.10	7	1.4	Add to enquiry
8	10x70080140.10	7	1.4	Add to enquiry
8.5	10x70085135.10	7	1.35	Add to enquiry
9	10x70090140.10	7	1.4	Add to enquiry
10	10x70100140.10	7	1.4	Add to enquiry
10.2	10x70102135.10	7	1.35	Add to enquiry
11	10x70110140.10	7	1.4	Add to enquiry
12	10x70120140.10	7	1.4	Add to enquiry
13	10x70130140.10	7	1.4	Add to enquiry
14	10x70140140.10	7	1.4	Add to enquiry
15	10x70150140.10	7	1.4	Add to enquiry
16	10x70160140.10	7	1.4	Add to enquiry
16.5	10x70165140.10	7	1.4	Add to enquiry
17	10x70170140.10	7	1.4	Add to enquiry
17.2	10x70172140.10	7	1.4	Add to enquiry
18	10x70180140.10	7	1.4	Add to enquiry
20	10x70200140.10	7	1.4	Add to enquiry
22	10x70220140.10	7	1.4	Add to enquiry
25	10x70250140.10	7	1.4	Add to enquiry
30	10x70300140.10	7	1.4	Add to enquiry

Polystyrene, Black

Length (mm)	Part Number	D1	D	ADD
3	10x08003045.ps	4.5	8	Add to enquiry
4	10x08004045.ps	4.5	8	Add to enquiry
5	10x08005045.ps	4.5	8	Add to enquiry
6	10x08006045.ps	4.5	8	Add to enquiry
7	10x08007045.ps	4.5	8	Add to enquiry
8	10x08008045.ps	4.5	8	Add to enquiry
9	10x08009045.ps	4.5	8	Add to enquiry
10	10x08010045.ps	4.5	8	Add to enquiry
11	10x08011045.ps	4.5	8	Add to enquiry
12	10x08012045.ps	4.5	8	Add to enquiry
13	10x08013045.ps	4.5	8	Add to enquiry
14	10x08014045.ps	4.5	8	Add to enquiry
15	10x08015045.ps	4.5	8	Add to enquiry
20	10x08020045.ps	4.5	8	Add to enquiry
25	10x08025045.ps	4.5	8	Add to enquiry
30	10x08030045.ps	4.5	8	Add to enquiry
35	10x08035045.ps	4.5	8	Add to enquiry

Polyamid, Black

Length (mm)	Part Number	D1	D	ADD
5	10x08005045.pa	4.5	8	Add to enquiry
10	10x08010045.pa	4.5	8	Add to enquiry
15	10x08015045.pa	4.5	8	Add to enquiry
20	10x08020045.pa	4.5	8	Add to enquiry
30	10x08030045.pa	4.5	8	Add to enquiry

Polycarbonate, Grey

Length (mm)	Part Number	D1	D	ADD
10	10x07010041.pc	4.1	7	Add to enquiry
3	10x08003045.pc	4.5	8	Add to enquiry
5	10x08005045.pc	4.5	8	Add to enquiry
8	10x08008045.pc	4.5	8	Add to enquiry
10	10x08010045.pc	4.5	8	Add to enquiry
15	10x08015045.pc	4.5	8	Add to enquiry
20	10x08020045.pc	4.5	8	Add to enquiry
25	10x08025045.pc	4.5	8	Add to enquiry
30	10x08030045.pc	4.5	8	Add to enquiry
35	10x08035045.pc	4.5	8	Add to enquiry

M5

Female - Female

Polyamide Max Temp 110°C

Brass - Nickel Plated

Length (mm)	Part Number	C	B	SW	ADD
8	10.5060.08	8	-	8	Add to enquiry
10	10.5060.10	10	-	8	Add to enquiry
12	10.5060.12	12	-	8	Add to enquiry
15	10.5060.15	15	-	8	Add to enquiry
18	10.5060.18	9	9	8	Add to enquiry
20	10.5060.20	10	10	8	Add to enquiry
25	10.5060.25	10	10	8	Add to enquiry
30	10.5060.30	10	10	8	Add to enquiry
35	10.5060.35	10	10	8	Add to enquiry
40	10.5060.40	10	10	8	Add to enquiry
45	10.5060.45	10	10	8	Add to enquiry
50	10.5060.50	10	10	8	Add to enquiry
55	10.5060.55	10	10	8	Add to enquiry
60	10.5060.60	10	10	8	Add to enquiry
65	10.5060.65	10	10	8	Add to enquiry
70	10.5060.70	10	10	8	Add to enquiry
75	10.5060.75	10	10	8	Add to enquiry
80	10.5060.80	10	10	8	Add to enquiry
85	10.5060.85	10	10	8	Add to enquiry
90	10.5060.90	10	10	8	Add to enquiry
95	10.5060.95	10	10	8	Add to enquiry
100	10.5060.100	10	10	8	Add to enquiry

Steel - Zinc Plated

Length (mm)	Part Number	C	B	SW	ADD
8	10.5061.08	8	-	8	Add to enquiry
10	10.5061.10	10	-	8	Add to enquiry
12	10.5061.12	12	-	8	Add to enquiry
15	10.5061.15	15	-	8	Add to enquiry
18	10.5061.18	9	9	8	Add to enquiry
20	10.5061.20	10	10	8	Add to enquiry
25	10.5061.25	10	10	8	Add to enquiry
30	10.5061.30	10	10	8	Add to enquiry
35	10.5061.35	10	10	8	Add to enquiry
40	10.5061.40	10	10	8	Add to enquiry
45	10.5061.45	10	10	8	Add to enquiry
50	10.5061.50	10	10	8	Add to enquiry
55	10.5061.55	10	10	8	Add to enquiry
60	10.5061.60	10	10	8	Add to enquiry
65	10.5061.65	10	10	8	Add to enquiry
70	10.5061.70	10	10	8	Add to enquiry
75	10.5061.75	10	10	8	Add to enquiry
80	10.5061.80	10	10	8	Add to enquiry
85	10.5061.85	10	10	8	Add to enquiry
90	10.5061.90	10	10	8	Add to enquiry
95	10.5061.95	10	10	8	Add to enquiry
100	10.5061.100	10	10	8	Add to enquiry

Stainless Steel

Length (mm)	Part Number	C	B	SW	ADD
8	10.5063.08	8	-	8	Add to enquiry
10	10.5063.10	10	-	8	Add to enquiry
12	10.5063.12	12	-	8	Add to enquiry
15	10.5063.15	15	-	8	Add to enquiry
18	10.5063.18	9	9	8	Add to enquiry
20	10.5063.20	10	10	8	Add to enquiry
25	10.5063.25	10	10	8	Add to enquiry
30	10.5063.30	10	10	8	Add to enquiry
35	10.5063.35	10	10	8	Add to enquiry
40	10.5063.40	10	10	8	Add to enquiry
45	10.5063.45	10	10	8	Add to enquiry
50	10.5063.50	10	10	8	Add to enquiry
55	10.5063.55	10	10	8	Add to enquiry
60	10.5063.60	10	10	8	Add to enquiry
65	10.5063.65	10	10	8	Add to enquiry
70	10.5063.70	10	10	8	Add to enquiry
75	10.5063.75	10	10	8	Add to enquiry
80	10.5063.80	10	10	8	Add to enquiry
85	10.5063.85	10	10	8	Add to enquiry
90	10.5063.90	10	10	8	Add to enquiry
95	10.5063.95	10	10	8	Add to enquiry
100	10.5063.100	10	10	8	Add to enquiry

Polyamide

Length (mm)	Part Number	C	B	SW	ADD
5	10.5062.05	5	-	10	Add to enquiry
6	10.5062.06	6	-	10	Add to enquiry
8	10.5062.08	8	-	10	Add to enquiry
10	10.5062.10	10	-	10	Add to enquiry
12	10.5062.12	12	-	10	Add to enquiry
15	10.5062.15	15	-	10	Add to enquiry
18	10.5062.18	18	-	10	Add to enquiry
20	10.5062.20	20	-	10	Add to enquiry
25	10.5062.25	10	10	10	Add to enquiry
30	10.5062.30	10	10	10	Add to enquiry
35	10.5062.35	10	10	10	Add to enquiry
40	10.5062.40	10	10	10	Add to enquiry
45	10.5062.45	10	10	10	Add to enquiry
50	10.5062.50	10	10	10	Add to enquiry
55	10.5062.55	10	10	10	Add to enquiry
60	10.5062.60	10	10	10	Add to enquiry
65	10.5062.65	10	10	10	Add to enquiry

Polyamide with Brass Insert

Length (mm)	Part Number	C	B	SW	ADD
15	10.5065.15	6	6	10	Add to enquiry
18	10.5065.18	6	6	10	Add to enquiry
20	10.5065.20	6	6	10	Add to enquiry
25	10.5065.25	6	6	10	Add to enquiry
30	10.5065.30	6	6	10	Add to enquiry
35	10.5065.35	6	6	10	Add to enquiry
40	10.5065.40	6	6	10	Add to enquiry
45	10.5065.45	6	6	10	Add to enquiry
50	10.5065.50	6	6	10	Add to enquiry
55	10.5065.55	6	6	10	Add to enquiry
60	10.5065.60	6	6	10	Add to enquiry
65	10.5065.65	6	6	10	Add to enquiry
70	10.5065.70	6	6	10	Add to enquiry

Male - Female

Polyamide Max Temp 110°C

Brass - Nickel Plated

Length (mm)	Part Number	C	B	SW	ADD
8	10.5040.08(8)	5	8	8	Add to enquiry
10	10.5040.10(8)	6	8	8	Add to enquiry
12	10.5040.12(8)	7	8	8	Add to enquiry
15	10.5040.15(8)	10	8	8	Add to enquiry
18	10.5040.18(8)	10	8	8	Add to enquiry
20	10.5040.20(8)	10	8	8	Add to enquiry
25	10.5040.25(8)	10	8	8	Add to enquiry
30	10.5040.30(8)	10	8	8	Add to enquiry
35	10.5040.35(8)	10	8	8	Add to enquiry
40	10.5040.40(8)	10	8	8	Add to enquiry
45	10.5040.45(8)	10	8	8	Add to enquiry
50	10.5040.50(8)	10	8	8	Add to enquiry
55	10.5040.55(8)	10	8	8	Add to enquiry
60	10.5040.60(8)	10	8	8	Add to enquiry
65	10.5040.65(8)	10	8	8	Add to enquiry
70	10.5040.70(8)	10	8	8	Add to enquiry
75	10.5040.75(8)	10	8	8	Add to enquiry
80	10.5040.80(8)	10	8	8	Add to enquiry
85	10.5040.85(8)	10	8	8	Add to enquiry
90	10.5040.90(8)	10	8	8	Add to enquiry
95	10.5040.95(8)	10	8	8	Add to enquiry
100	10.5040.100(8)	10	8	8	Add to enquiry

Steel - Zinc Plated

Length (mm)	Part Number	C	B	SW	ADD
8	10.5041.08(8)	5	8	8	Add to enquiry
10	10.5041.10(8)	6	8	8	Add to enquiry
12	10.5041.12(8)	7	8	8	Add to enquiry
15	10.5041.15(8)	10	8	8	Add to enquiry
18	10.5041.18(8)	10	8	8	Add to enquiry
20	10.5041.20(8)	10	8	8	Add to enquiry
25	10.5041.25(8)	10	8	8	Add to enquiry
30	10.5041.30(8)	10	8	8	Add to enquiry
35	10.5041.35(8)	10	8	8	Add to enquiry
40	10.5041.40(8)	10	8	8	Add to enquiry
45	10.5041.45(8)	10	8	8	Add to enquiry
50	10.5041.50(8)	10	8	8	Add to enquiry
55	10.5041.55(8)	10	8	8	Add to enquiry
60	10.5041.60(8)	10	8	8	Add to enquiry
65	10.5041.65(8)	10	8	8	Add to enquiry
70	10.5041.70(8)	10	8	8	Add to enquiry
75	10.5041.75(8)	10	8	8	Add to enquiry
80	10.5041.80(8)	10	8	8	Add to enquiry
85	10.5041.85(8)	10	8	8	Add to enquiry
90	10.5041.90(8)	10	8	8	Add to enquiry
95	10.5041.95(8)	10	8	8	Add to enquiry
100	10.5041.100(8)	10	8	8	Add to enquiry

Stainless Steel

Length (mm)	Part Number	C	B	SW	ADD
10	10.5043.10(8)	6	8	8	Add to enquiry
12	10.5043.12(8)	8	8	8	Add to enquiry
15	10.5043.15(8)	10	8	8	Add to enquiry
18	10.5043.18(8)	10	8	8	Add to enquiry
20	10.5043.20(8)	10	8	8	Add to enquiry
25	10.5043.25(8)	10	8	8	Add to enquiry
30	10.5043.30(8)	10	8	8	Add to enquiry
35	10.5043.35(8)	10	8	8	Add to enquiry
40	10.5043.40(8)	10	8	8	Add to enquiry
45	10.5043.45(8)	10	8	8	Add to enquiry
50	10.5043.50(8)	10	8	8	Add to enquiry
55	10.5043.55(8)	10	8	8	Add to enquiry
60	10.5043.60(8)	10	8	8	Add to enquiry
65	10.5043.65(8)	10	8	8	Add to enquiry
70	10.5043.70(8)	10	8	8	Add to enquiry
75	10.5043.75(8)	10	8	8	Add to enquiry
80	10.5043.80(8)	10	8	8	Add to enquiry
85	10.5043.85(8)	10	8	8	Add to enquiry
90	10.5043.90(8)	10	8	8	Add to enquiry
95	10.5043.95(8)	10	8	8	Add to enquiry
100	10.5043.100(8)	10	8	8	Add to enquiry

Polyamide

Length (mm)	Part Number	C	B	SW	ADD
8	10.5042.08(8)	6	8	10	Add to enquiry
10	10.5042.10(8)	8	8	10	Add to enquiry
12	10.5042.12(8)	10	8	10	Add to enquiry
15	10.5042.15(8)	10	8	10	Add to enquiry
18	10.5042.18(8)	10	8	10	Add to enquiry
20	10.5042.20(8)	10	8	10	Add to enquiry
25	10.5042.25(8)	10	8	10	Add to enquiry
30	10.5042.30(8)	10	8	10	Add to enquiry
35	10.5042.35(8)	10	8	10	Add to enquiry
40	10.5042.40(8)	10	8	10	Add to enquiry
45	10.5042.45(8)	10	8	10	Add to enquiry
50	10.5042.50(8)	10	8	10	Add to enquiry
55	10.5042.55(8)	10	8	10	Add to enquiry
60	10.5042.60(8)	10	8	10	Add to enquiry
65	10.5042.65(8)	10	8	10	Add to enquiry
70	10.5042.70(8)	10	8	10	Add to enquiry

Polyamide with Brass Insert

Length (mm)	Part Number	C	B	SW	ADD
15	10.5045.15(10)	6	10	10	Add to enquiry
18	10.5045.18(10)	6	10	10	Add to enquiry
20	10.5045.20(10)	6	10	10	Add to enquiry
25	10.5045.25(10)	6	10	10	Add to enquiry
30	10.5045.30(10)	6	10	10	Add to enquiry
35	10.5045.35(10)	6	10	10	Add to enquiry
40	10.5045.40(10)	6	10	10	Add to enquiry
45	10.5045.45(10)	6	10	10	Add to enquiry
50	10.5045.50(10)	6	10	10	Add to enquiry
55	10.5045.55(10)	6	10	10	Add to enquiry
60	10.5045.60(10)	6	10	10	Add to enquiry
65	10.5045.65(10)	6	10	10	Add to enquiry
70	10.5045.70(10)	6	10	10	Add to enquiry

Male - Male

Polyamide Max Temp 110°C

Brass - Nickel Plated

Length (mm)	Part Number	C	B	SW	ADD
8	10.5080.08	8	8	8	Add to enquiry
10	10.5080.10	8	8	8	Add to enquiry
12	10.5080.12	8	8	8	Add to enquiry
15	10.5080.15	8	8	8	Add to enquiry
18	10.5080.18	8	8	8	Add to enquiry
20	10.5080.20	8	8	8	Add to enquiry
25	10.5080.25	8	8	8	Add to enquiry
30	10.5080.30	8	8	8	Add to enquiry
35	10.5080.35	8	8	8	Add to enquiry
40	10.5080.40	8	8	8	Add to enquiry
45	10.5080.45	8	8	8	Add to enquiry
50	10.5080.50	8	8	8	Add to enquiry
55	10.5080.55	8	8	8	Add to enquiry
60	10.5080.60	8	8	8	Add to enquiry
65	10.5080.65	8	8	8	Add to enquiry
70	10.5080.70	8	8	8	Add to enquiry
75	10.5080.75	8	8	8	Add to enquiry
80	10.5080.80	8	8	8	Add to enquiry
85	10.5080.85	8	8	8	Add to enquiry
90	10.5080.90	8	8	8	Add to enquiry
95	10.5080.95	8	8	8	Add to enquiry
100	10.5080.100	8	8	8	Add to enquiry

Steel - Zinc Plated

Length (mm)	Part Number	C	B	SW	ADD
8	10.5081.08	8	8	8	Add to enquiry
10	10.5081.10	8	8	8	Add to enquiry
12	10.5081.12	8	8	8	Add to enquiry
15	10.5081.15	8	8	8	Add to enquiry
18	10.5081.18	8	8	8	Add to enquiry
20	10.5081.20	8	8	8	Add to enquiry
25	10.5081.25	8	8	8	Add to enquiry
30	10.5081.30	8	8	8	Add to enquiry
35	10.5081.35	8	8	8	Add to enquiry
40	10.5081.40	8	8	8	Add to enquiry
45	10.5081.45	8	8	8	Add to enquiry
50	10.5081.50	8	8	8	Add to enquiry
55	10.5081.55	8	8	8	Add to enquiry
60	10.5081.60	8	8	8	Add to enquiry
65	10.5081.65	8	8	8	Add to enquiry
70	10.5081.70	8	8	8	Add to enquiry
75	10.5081.75	8	8	8	Add to enquiry
80	10.5081.80	8	8	8	Add to enquiry
85	10.5081.85	8	8	8	Add to enquiry
90	10.5081.90	8	8	8	Add to enquiry
95	10.5081.95	8	8	8	Add to enquiry
100	10.5081.100	8	8	8	Add to enquiry

Stainless Steel

Length (mm)	Part Number	C	B	SW	ADD
10	10.5083.10	8	8	8	Add to enquiry
12	10.5083.12	8	8	8	Add to enquiry
15	10.5083.15	8	8	8	Add to enquiry
18	10.5083.18	8	8	8	Add to enquiry
20	10.5083.20	8	8	8	Add to enquiry
25	10.5083.25	8	8	8	Add to enquiry
30	10.5083.30	8	8	8	Add to enquiry
35	10.5083.35	8	8	8	Add to enquiry
40	10.5083.40	8	8	8	Add to enquiry
45	10.5083.45	8	8	8	Add to enquiry
50	10.5083.50	8	8	8	Add to enquiry
55	10.5083.55	8	8	8	Add to enquiry
60	10.5083.60	8	8	8	Add to enquiry
65	10.5083.65	8	8	8	Add to enquiry
70	10.5083.70	8	8	8	Add to enquiry
75	10.5083.75	8	8	8	Add to enquiry
80	10.5083.80	8	8	8	Add to enquiry
85	10.5083.85	8	8	8	Add to enquiry
90	10.5083.90	8	8	8	Add to enquiry
95	10.5083.95	8	8	8	Add to enquiry
100	10.5083.100	8	8	8	Add to enquiry

Polyamide with Brass Insert

Length (mm)	Part Number	C	B	SW	ADD
15	10.5085.15	10	10	10	Add to enquiry
18	10.5085.18	10	10	10	Add to enquiry
20	10.5085.20	10	10	10	Add to enquiry
25	10.5085.25	10	10	10	Add to enquiry
30	10.5085.30	10	10	10	Add to enquiry
35	10.5085.35	10	10	10	Add to enquiry
40	10.5085.40	10	10	10	Add to enquiry
45	10.5085.45	10	10	10	Add to enquiry
50	10.5085.50	10	10	10	Add to enquiry
55	10.5085.55	10	10	10	Add to enquiry
60	10.5085.60	10	10	10	Add to enquiry
65	10.5085.65	10	10	10	Add to enquiry
70	10.5085.70	10	10	10	Add to enquiry

Self Tapping

Brass - Nickel Plated

Length (mm)	Part Number	C	B	SW	D1	D2	ADD
8	10.5053.08	5	8	8	4.7	3.5	Add to enquiry
10	10.5053.10	6	8	8	4.7	3.5	Add to enquiry
12	10.5053.12	7	8	8	4.7	3.5	Add to enquiry
15	10.5053.15	10	8	8	4.7	3.5	Add to enquiry
20	10.5053.20	10	8	8	4.7	3.5	Add to enquiry

Steel Zinc Plated

Length (mm)	Part Number	C	B	SW	D1	D2	ADD
8	10.5054.08	5	8	8	4.7	3.5	Add to enquiry
10	10.5054.10	6	8	8	4.7	3.5	Add to enquiry
12	10.5054.12	7	8	8	4.7	3.5	Add to enquiry
15	10.5054.15	10	8	8	4.7	3.5	Add to enquiry
20	10.5054.20	10	8	8	4.7	3.5	Add to enquiry

Spacer Sleeves

Aluminium

Length (mm)	Part Number	D	S	ADD
5	10x60050050.10	6	0.5	Add to enquiry
3	10x65030075.10	6.5	0.75	Add to enquiry
2	10x70020100.10	7	1	Add to enquiry
4	10x70040100.10	7	1	Add to enquiry
5	10x70050100.10	7	1	Add to enquiry
18	10x70180100.10	7	1	Add to enquiry
3	10x80030140.10	8	1.4	Add to enquiry
3.5	10x80035140.10	8	1.4	Add to enquiry
4	10x80040140.10	8	1.4	Add to enquiry
4.5	10x80045140.10	8	1.4	Add to enquiry
5	10x80050140.10	8	1.4	Add to enquiry
6	10x80060140.10	8	1.4	Add to enquiry
7	10x80070140.10	8	1.4	Add to enquiry
8	10x80080140.10	8	1.4	Add to enquiry
9	10x80090140.10	8	1.4	Add to enquiry
9.5	10x80095140.10	8	1.4	Add to enquiry
10	10x80100140.10	8	1.4	Add to enquiry
12	10x80120140.10	8	1.4	Add to enquiry
14	10x80140140.10	8	1.4	Add to enquiry
15	10x80150140.10	8	1.4	Add to enquiry
16	10x80160140.10	8	1.4	Add to enquiry
18	10x80180140.10	8	1.4	Add to enquiry
19	10x80190140.10	8	1.4	Add to enquiry
20	10x80200140.10	8	1.4	Add to enquiry
25	10x80250140.10	8	1.4	Add to enquiry
26.5	10x80265140.10	8	1.4	Add to enquiry
28	10x80280140.10	8	1.4	Add to enquiry
30	10x80300140.10	8	1.4	Add to enquiry
35	10x80350140.10	8	1.4	Add to enquiry
36	10x80360140.10	8	1.4	Add to enquiry
40	10x80400140.10	8	1.4	Add to enquiry

Polystyrene, Black

Length (mm)	Part Number	D1	D	ADD
3	10x10003055.ps	5.5	10	Add to enquiry
5	10x10005055.ps	5.5	10	Add to enquiry
10	10x10010055.ps	5.5	10	Add to enquiry
15	10x10015055.ps	5.5	10	Add to enquiry
20	10x10020055.ps	5.5	10	Add to enquiry
25	10x10025055.ps	5.5	10	Add to enquiry
30	10x10030055.ps	5.5	10	Add to enquiry
35	10x10035055.ps	5.5	10	Add to enquiry

Polyamid, Black

Length (mm)	Part Number	D1	D	ADD
5	10x10005052.pa	5.2	10	Add to enquiry
10	10x10010052.pa	5.2	10	Add to enquiry
20	10x10020052.pa	5.2	10	Add to enquiry
30	10x10030052.pa	5.2	10	Add to enquiry

Polycarbonate, Grey

Length (mm)	Part Number	D1	D	ADD
2.5	10x10002555.pc	5.5	10	Add to enquiry
3	10x10003055.pc	5.5	10	Add to enquiry
5	10x10005055.pc	5.5	10	Add to enquiry
10	10x10010055.pc	5.5	10	Add to enquiry
15	10x10015055.pc	5.5	10	Add to enquiry
20	10x10020055.pc	5.5	10	Add to enquiry
25	10x10025055.pc	5.5	10	Add to enquiry
30	10x10030055.pc	5.5	10	Add to enquiry
35	10x10035055.pc	5.5	10	Add to enquiry

M6

Female - Female

Polyamide Max Temp 110°C

Brass - Nickel Plated

Length (mm)	Part Number	C	B	SW	ADD
10	10.6060.10	10	-	10	Add to enquiry
12	10.6060.12	12	-	10	Add to enquiry
15	10.6060.15	15	-	10	Add to enquiry
18	10.6060.18	9	9	10	Add to enquiry
20	10.6060.20	10	10	10	Add to enquiry
25	10.6060.25	10	10	10	Add to enquiry
30	10.6060.30	12	12	10	Add to enquiry
35	10.6060.35	12	12	10	Add to enquiry
40	10.6060.40	12	12	10	Add to enquiry
45	10.6060.45	12	12	10	Add to enquiry
50	10.6060.50	12	12	10	Add to enquiry
55	10.6060.55	12	12	10	Add to enquiry
60	10.6060.60	12	12	10	Add to enquiry
65	10.6060.65	12	12	10	Add to enquiry
70	10.6060.70	12	12	10	Add to enquiry
75	10.6060.75	12	12	10	Add to enquiry
80	10.6060.80	12	12	10	Add to enquiry
85	10.6060.85	12	12	10	Add to enquiry
90	10.6060.90	12	12	10	Add to enquiry
95	10.6060.95	12	12	10	Add to enquiry
100	10.6060.100	12	12	10	Add to enquiry

Steel - Zinc Plated

Length (mm)	Part Number	C	B	SW	ADD
10	10.6061.10	10	-	10	Add to enquiry
12	10.6061.12	12	-	10	Add to enquiry
15	10.6061.15	15	-	10	Add to enquiry
18	10.6061.18	9	9	10	Add to enquiry
20	10.6061.20	10	10	10	Add to enquiry
25	10.6061.25	10	10	10	Add to enquiry
30	10.6061.30	12	10	10	Add to enquiry
35	10.6061.35	12	10	10	Add to enquiry
40	10.6061.40	12	10	10	Add to enquiry
45	10.6061.45	12	10	10	Add to enquiry
50	10.6061.50	12	10	10	Add to enquiry
55	10.6061.55	12	10	10	Add to enquiry
60	10.6061.60	12	10	10	Add to enquiry
65	10.6061.65	12	10	10	Add to enquiry
70	10.6061.70	12	10	10	Add to enquiry
75	10.6061.75	12	10	10	Add to enquiry
80	10.6061.80	12	10	10	Add to enquiry
85	10.6061.85	12	10	10	Add to enquiry
90	10.6061.90	12	10	10	Add to enquiry
95	10.6061.95	12	10	10	Add to enquiry
100	10.6061.100	12	10	10	Add to enquiry

Stainless Steel

Length (mm)	Part Number	C	B	SW	ADD
10	10.6063.10	10	-	10	Add to enquiry
12	10.6063.12	12	-	10	Add to enquiry
15	10.6063.15	15	-	10	Add to enquiry
18	10.6063.18	9	9	10	Add to enquiry
20	10.6063.20	10	10	10	Add to enquiry
25	10.6063.25	12	12	10	Add to enquiry
30	10.6063.30	12	12	10	Add to enquiry
35	10.6063.35	12	12	10	Add to enquiry
40	10.6063.40	12	12	10	Add to enquiry
45	10.6063.45	12	12	10	Add to enquiry
50	10.6063.50	12	12	10	Add to enquiry
55	10.6063.55	12	12	10	Add to enquiry
60	10.6063.60	12	12	10	Add to enquiry
65	10.6063.65	12	12	10	Add to enquiry
70	10.6063.70	12	12	10	Add to enquiry
75	10.6063.75	12	12	10	Add to enquiry
80	10.6063.80	12	12	10	Add to enquiry
85	10.6063.85	12	12	10	Add to enquiry
90	10.6063.90	12	12	10	Add to enquiry
95	10.6063.95	12	12	10	Add to enquiry
100	10.6063.100	12	12	10	Add to enquiry

Polyamide

Length (mm)	Part Number	C	B	SW	ADD
5	10.6062.05	5	-	10	Add to enquiry
6	10.6062.06	6	-	10	Add to enquiry
8	10.6062.08	8	-	10	Add to enquiry
10	10.6062.10	10	-	10	Add to enquiry
12	10.6062.12	12	-	10	Add to enquiry
15	10.6062.15	15	-	10	Add to enquiry
18	10.6062.18	18	-	10	Add to enquiry
20	10.6062.20	20	-	10	Add to enquiry
25	10.6062.25	10	10	10	Add to enquiry
30	10.6062.30	10	10	10	Add to enquiry
35	10.6062.35	10	10	10	Add to enquiry
40	10.6062.40	10	10	10	Add to enquiry
45	10.6062.45	10	10	10	Add to enquiry
50	10.6062.50	10	10	10	Add to enquiry
55	10.6062.55	10	10	10	Add to enquiry
60	10.6062.60	10	10	10	Add to enquiry
65	10.6062.65	10	10	10	Add to enquiry

Polyamide with Brass Insert

Length (mm)	Part Number	C	B	SW	ADD
25	10.6065.25	10	10	13	Add to enquiry
30	10.6065.30	10	10	13	Add to enquiry
35	10.6065.35	10	10	13	Add to enquiry
40	10.6065.40	10	10	13	Add to enquiry
45	10.6065.45	10	10	13	Add to enquiry
50	10.6065.50	10	10	13	Add to enquiry
55	10.6065.55	10	10	13	Add to enquiry
60	10.6065.60	10	10	13	Add to enquiry
65	10.6065.65	10	10	13	Add to enquiry
70	10.6065.70	10	10	13	Add to enquiry
75	10.6065.75	10	10	13	Add to enquiry
80	10.6065.80	10	10	13	Add to enquiry
85	10.6065.85	10	10	13	Add to enquiry
90	10.6065.90	10	10	13	Add to enquiry
95	10.6065.95	10	10	13	Add to enquiry
100	10.6065.100	10	10	13	Add to enquiry

Male - Female

Polyamide Max Temp 110°C

Brass - Nickel Plated

Length (mm)	Part Number	C	B	SW	ADD
10	10.6040.10(10)	6	10	10	Add to enquiry
12	10.6040.12(10)	7	10	10	Add to enquiry
15	10.6040.15(10)	10	10	10	Add to enquiry
18	10.6040.18(10)	10	10	10	Add to enquiry
20	10.6040.20(10)	12	10	10	Add to enquiry
25	10.6040.25(10)	12	10	10	Add to enquiry
30	10.6040.30(10)	12	10	10	Add to enquiry
35	10.6040.35(10)	12	10	10	Add to enquiry
40	10.6040.40(10)	12	10	10	Add to enquiry
45	10.6040.45(10)	12	10	10	Add to enquiry
50	10.6040.50(10)	12	10	10	Add to enquiry
55	10.6040.55(10)	12	10	10	Add to enquiry
60	10.6040.60(10)	12	10	10	Add to enquiry
65	10.6040.65(10)	12	10	10	Add to enquiry
70	10.6040.70(10)	12	10	10	Add to enquiry
75	10.6040.75(10)	12	10	10	Add to enquiry
80	10.6040.80(10)	12	10	10	Add to enquiry
85	10.6040.85(10)	12	10	10	Add to enquiry
90	10.6040.90(10)	12	10	10	Add to enquiry
95	10.6040.95(10)	12	10	10	Add to enquiry
100	10.6040.100(10)	12	10	10	Add to enquiry

Steel - Zinc Plated

Length (mm)	Part Number	C	B	SW	ADD
10	10.6041.10(10)	6	10	10	Add to enquiry
12	10.6041.12(10)	7	10	10	Add to enquiry
15	10.6041.15(10)	10	10	10	Add to enquiry
18	10.6041.18(10)	10	10	10	Add to enquiry
20	10.6041.20(10)	12	10	10	Add to enquiry
25	10.6041.25(10)	12	10	10	Add to enquiry
30	10.6041.30(10)	12	10	10	Add to enquiry
35	10.6041.35(10)	12	10	10	Add to enquiry
40	10.6041.40(10)	12	10	10	Add to enquiry
45	10.6041.45(10)	12	10	10	Add to enquiry
50	10.6041.50(10)	12	10	10	Add to enquiry
55	10.6041.55(10)	12	10	10	Add to enquiry
60	10.6041.60(10)	12	10	10	Add to enquiry
65	10.6041.65(10)	12	10	10	Add to enquiry
70	10.6041.70(10)	12	10	10	Add to enquiry
75	10.6041.75(10)	12	10	10	Add to enquiry
80	10.6041.80(10)	12	10	10	Add to enquiry
85	10.6041.85(10)	12	10	10	Add to enquiry
90	10.6041.90(10)	12	10	10	Add to enquiry
95	10.6041.95(10)	12	10	10	Add to enquiry
100	10.6041.100(10)	12	10	10	Add to enquiry

Stainless Steel

Length (mm)	Part Number	C	B	SW	ADD
10	10.6043.10(10)	5	10	10	Add to enquiry
12	10.6043.12(10)	7	10	10	Add to enquiry
15	10.6043.15(10)	10	10	10	Add to enquiry
18	10.6043.18(10)	12	10	10	Add to enquiry
20	10.6043.20(10)	12	10	10	Add to enquiry
25	10.6043.25(10)	12	10	10	Add to enquiry
30	10.6043.30(10)	12	10	10	Add to enquiry
35	10.6043.35(10)	12	10	10	Add to enquiry
40	10.6043.40(10)	12	10	10	Add to enquiry
45	10.6043.45(10)	12	10	10	Add to enquiry
50	10.6043.50(10)	12	10	10	Add to enquiry
55	10.6043.55(10)	12	10	10	Add to enquiry
60	10.6043.60(10)	12	10	10	Add to enquiry
65	10.6043.65(10)	12	10	10	Add to enquiry
70	10.6043.70(10)	12	10	10	Add to enquiry
75	10.6043.75(10)	12	10	10	Add to enquiry
80	10.6043.80(10)	12	10	10	Add to enquiry
85	10.6043.85(10)	12	10	10	Add to enquiry
90	10.6043.90(10)	12	10	10	Add to enquiry
95	10.6043.95(10)	12	10	10	Add to enquiry
100	10.6043.100(10)	12	10	10	Add to enquiry

Polyamide

Length (mm)	Part Number	C	B	SW	ADD
8	10.6042.08(10)	6	10	10	Add to enquiry
10	10.6042.10(10)	8	10	10	Add to enquiry
12	10.6042.12(10)	10	10	10	Add to enquiry
15	10.6042.15(10)	10	10	10	Add to enquiry
18	10.6042.18(10)	10	10	10	Add to enquiry
20	10.6042.20(10)	10	10	10	Add to enquiry
25	10.6042.25(10)	10	10	10	Add to enquiry
30	10.6042.30(10)	10	10	10	Add to enquiry
35	10.6042.35(10)	10	10	10	Add to enquiry
40	10.6042.40(10)	10	10	10	Add to enquiry
45	10.6042.45(10)	10	10	10	Add to enquiry
50	10.6042.50(10)	10	10	10	Add to enquiry
55	10.6042.55(10)	10	10	10	Add to enquiry
60	10.6042.60(10)	10	10	10	Add to enquiry
65	10.6042.65(10)	10	10	10	Add to enquiry

Polyamide with Brass Insert

Length (mm)	Part Number	C	B	SW	ADD
25	10.6045.25(12)	10	12	13	Add to enquiry
30	10.6045.30(12)	10	12	13	Add to enquiry
35	10.6045.35(12)	10	12	13	Add to enquiry
40	10.6045.40(12)	10	12	13	Add to enquiry
45	10.6045.45(12)	10	12	13	Add to enquiry
50	10.6045.50(12)	10	12	13	Add to enquiry
55	10.6045.55(12)	10	12	13	Add to enquiry
60	10.6045.60(12)	10	12	13	Add to enquiry

Male - Male

Polyamide Max Temp 110°C

Brass - Nickel Plated

Length (mm)	Part Number	C	B	SW	ADD
10	10.6080.10	10	10	10	Add to enquiry
12	10.6080.12	10	10	10	Add to enquiry
15	10.6080.15	10	10	10	Add to enquiry
18	10.6080.18	10	10	10	Add to enquiry
20	10.6080.20	10	10	10	Add to enquiry
25	10.6080.25	10	10	10	Add to enquiry
30	10.6080.30	10	10	10	Add to enquiry
35	10.6080.35	10	10	10	Add to enquiry
40	10.6080.40	10	10	10	Add to enquiry
45	10.6080.45	10	10	10	Add to enquiry
50	10.6080.50	10	10	10	Add to enquiry
55	10.6080.55	10	10	10	Add to enquiry
60	10.6080.60	10	10	10	Add to enquiry
65	10.6080.65	10	10	10	Add to enquiry
70	10.6080.70	10	10	10	Add to enquiry
75	10.6080.75	10	10	10	Add to enquiry
80	10.6080.80	10	10	10	Add to enquiry
85	10.6080.85	10	10	10	Add to enquiry
90	10.6080.90	10	10	10	Add to enquiry
95	10.6080.95	10	10	10	Add to enquiry
100	10.6080.100	10	10	10	Add to enquiry

Steel - Zinc Plated

Length (mm)	Part Number	C	B	SW	ADD
10	10.6081.10	10	10	10	Add to enquiry
12	10.6081.12	10	10	10	Add to enquiry
15	10.6081.15	10	10	10	Add to enquiry
18	10.6081.18	10	10	10	Add to enquiry
20	10.6081.20	10	10	10	Add to enquiry
25	10.6081.25	10	10	10	Add to enquiry
30	10.6081.30	10	10	10	Add to enquiry
35	10.6081.35	10	10	10	Add to enquiry
40	10.6081.40	10	10	10	Add to enquiry
45	10.6081.45	10	10	10	Add to enquiry
50	10.6081.50	10	10	10	Add to enquiry
55	10.6081.55	10	10	10	Add to enquiry
60	10.6081.60	10	10	10	Add to enquiry
65	10.6081.65	10	10	10	Add to enquiry
70	10.6081.70	10	10	10	Add to enquiry
75	10.6081.75	10	10	10	Add to enquiry
80	10.6081.80	10	10	10	Add to enquiry
85	10.6081.85	10	10	10	Add to enquiry
90	10.6081.90	10	10	10	Add to enquiry
95	10.6081.95	10	10	10	Add to enquiry
100	10.6081.100	10	10	10	Add to enquiry

Stainless Steel

Length (mm)	Part Number	C	B	SW	ADD
10	10.6083.10	10	10	10	Add to enquiry
12	10.6083.12	10	10	10	Add to enquiry
15	10.6083.15	10	10	10	Add to enquiry
18	10.6083.18	10	10	10	Add to enquiry
20	10.6083.20	10	10	10	Add to enquiry
25	10.6083.25	10	10	10	Add to enquiry
30	10.6083.30	10	10	10	Add to enquiry
35	10.6083.35	10	10	10	Add to enquiry
40	10.6083.40	10	10	10	Add to enquiry
45	10.6083.45	10	10	10	Add to enquiry
50	10.6083.50	10	10	10	Add to enquiry
55	10.6083.55	10	10	10	Add to enquiry
60	10.6083.60	10	10	10	Add to enquiry
65	10.6083.65	10	10	10	Add to enquiry
70	10.6083.70	10	10	10	Add to enquiry
75	10.6083.75	10	10	10	Add to enquiry
80	10.6083.80	10	10	10	Add to enquiry
85	10.6083.85	10	10	10	Add to enquiry
90	10.6083.90	10	10	10	Add to enquiry
95	10.6083.95	10	10	10	Add to enquiry
100	10.6083.100	10	10	10	Add to enquiry

Polyamide with Brass Insert

Length (mm)	Part Number	C	B	SW	ADD
25	10.6085.25	12	12	13	Add to enquiry
30	10.6085.30	12	12	13	Add to enquiry
35	10.6085.35	12	12	13	Add to enquiry
40	10.6085.40	12	12	13	Add to enquiry
45	10.6085.45	12	12	13	Add to enquiry
50	10.6085.50	12	12	13	Add to enquiry
55	10.6085.55	12	12	13	Add to enquiry
60	10.6085.60	12	12	13	Add to enquiry
65	10.6085.65	12	12	13	Add to enquiry
70	10.6085.70	12	12	13	Add to enquiry
75	10.6085.75	12	12	13	Add to enquiry
80	10.6085.80	12	12	13	Add to enquiry
85	10.6085.85	12	12	13	Add to enquiry
90	10.6085.90	12	12	13	Add to enquiry
95	10.6085.95	12	12	13	Add to enquiry
100	10.6085.100	12	12	13	Add to enquiry

Self Tapping

Brass - Nickel Plated

Length (mm)	Part Number	C	B	SW	D1	D2	ADD
10	10.6053.10	6	10	10	6.1	4.8	Add to enquiry
12	10.6053.12	7	10	10	6.1	4.8	Add to enquiry
15	10.6053.15	10	10	10	6.1	4.8	Add to enquiry
20	10.6053.20	10	10	10	6.1	4.8	Add to enquiry

Steel Zinc Plated

Length (mm)	Part Number	C	B	SW	D1	D2	ADD
10	10.6054.10	6	10	10	6.1	4.8	Add to enquiry
12	10.6054.12	7	10	10	6.1	4.8	Add to enquiry
15	10.6054.15	10	10	10	6.1	4.8	Add to enquiry
20	10.6054.20	10	10	10	6.1	4.8	Add to enquiry

Spacer Sleeves

Aluminium

Polystyrene, Black

Length (mm)	Part Number	D1	D	ADD
5	10x10005062.ps	6.2	10	Add to enquiry
10	10x10010062.ps	6.2	10	Add to enquiry
15	10x10015062.ps	6.2	10	Add to enquiry
20	10x10020062.ps	6.2	10	Add to enquiry
25	10x10025062.ps	6.2	10	Add to enquiry
30	10x10030062.ps	6.2	10	Add to enquiry
35	10x10035062.ps	6.2	10	Add to enquiry

Polyamid, Black

Length (mm)	Part Number	D1	D	ADD
5	10x10005062.pa	6.2	10	Add to enquiry
10	10x10010062.pa	6.2	10	Add to enquiry
20	10x10020062.pa	6.2	10	Add to enquiry
30	10x10030062.pa	6.2	10	Add to enquiry

M8

Female - Female

Polyamide Max Temp 110°C

Brass - Nickel Plated

Length (mm)	Part Number	C	B	SW	ADD
15	10.8060.15	15	-	13	Add to enquiry
20	10.8060.20	20	-	13	Add to enquiry
25	10.8060.25	10	10	13	Add to enquiry
30	10.8060.30	14	14	13	Add to enquiry
35	10.8060.35	14	14	13	Add to enquiry
40	10.8060.40	14	14	13	Add to enquiry
45	10.8060.45	14	14	13	Add to enquiry
50	10.8060.50	14	14	13	Add to enquiry
55	10.8060.55	14	14	13	Add to enquiry
60	10.8060.60	14	14	13	Add to enquiry
65	10.8060.65	14	14	13	Add to enquiry
70	10.8060.70	14	14	13	Add to enquiry
75	10.8060.75	14	14	13	Add to enquiry
80	10.8060.80	14	14	13	Add to enquiry
85	10.8060.85	14	14	13	Add to enquiry
90	10.8060.90	14	14	13	Add to enquiry
95	10.8060.95	14	14	13	Add to enquiry
100	10.8060.100	14	14	13	Add to enquiry

Steel - Zinc Plated

Length (mm)	Part Number	C	B	SW	ADD
15	10.8061.15	15	-	13	Add to enquiry
20	10.8061.20	20	-	13	Add to enquiry
25	10.8061.25	10	10	13	Add to enquiry
30	10.8061.30	14	14	13	Add to enquiry
35	10.8061.35	14	14	13	Add to enquiry
40	10.8061.40	14	14	13	Add to enquiry
45	10.8061.45	14	14	13	Add to enquiry
50	10.8061.50	14	14	13	Add to enquiry
55	10.8061.55	14	14	13	Add to enquiry
60	10.8061.60	14	14	13	Add to enquiry
65	10.8061.65	14	14	13	Add to enquiry
70	10.8061.70	14	14	13	Add to enquiry
75	10.8061.75	14	14	13	Add to enquiry
80	10.8061.80	14	14	13	Add to enquiry
85	10.8061.85	14	14	13	Add to enquiry
90	10.8061.90	14	14	13	Add to enquiry
95	10.8061.95	14	14	13	Add to enquiry
100	10.8061.100	14	14	13	Add to enquiry

Stainless Steel

Length (mm)	Part Number	C	B	SW	ADD
15	10.8063.15	15	-	13	Add to enquiry
20	10.8063.20	20	-	13	Add to enquiry
25	10.8063.25	12	12	13	Add to enquiry
30	10.8063.30	14	14	13	Add to enquiry
35	10.8063.35	14	14	13	Add to enquiry
40	10.8063.40	14	14	13	Add to enquiry
45	10.8063.45	14	14	13	Add to enquiry
50	10.8063.50	14	14	13	Add to enquiry
60	10.8063.60	14	14	13	Add to enquiry
70	10.8063.70	14	14	13	Add to enquiry
80	10.8063.80	14	14	13	Add to enquiry
90	10.8063.90	14	14	13	Add to enquiry
100	10.8063.100	14	14	13	Add to enquiry

Polyamide with Brass Insert

Length (mm)	Part Number	C	B	SW	ADD
25	10.8065.25	11	11	15	Add to enquiry
30	10.8065.30	11	11	15	Add to enquiry
35	10.8065.35	11	11	15	Add to enquiry
40	10.8065.40	11	11	15	Add to enquiry
45	10.8065.45	11	11	15	Add to enquiry
50	10.8065.50	11	11	15	Add to enquiry
55	10.8065.55	11	11	15	Add to enquiry
60	10.8065.60	11	11	15	Add to enquiry
65	10.8065.65	11	11	15	Add to enquiry
70	10.8065.70	11	11	15	Add to enquiry
75	10.8065.75	11	11	15	Add to enquiry
80	10.8065.80	11	11	15	Add to enquiry
85	10.8065.85	11	11	15	Add to enquiry
90	10.8065.90	11	11	15	Add to enquiry
95	10.8065.95	11	11	15	Add to enquiry
100	10.8065.100	11	11	15	Add to enquiry

Male - Female

Polyamide Max Temp 110°C

Brass - Nickel Plated

Length (mm)	Part Number	C	B	SW	ADD
15	10.8040.15(14)	10	14	13	Add to enquiry
20	10.8040.20(14)	14	14	13	Add to enquiry
25	10.8040.25(14)	14	14	13	Add to enquiry
30	10.8040.30(14)	14	14	13	Add to enquiry
35	10.8040.35(14)	14	14	13	Add to enquiry
40	10.8040.40(14)	14	14	13	Add to enquiry
45	10.8040.45(14)	14	14	13	Add to enquiry
50	10.8040.50(14)	14	14	13	Add to enquiry
55	10.8040.55(14)	14	14	13	Add to enquiry
60	10.8040.60(14)	14	14	13	Add to enquiry
65	10.8040.65(14)	14	14	13	Add to enquiry
70	10.8040.70(14)	14	14	13	Add to enquiry
75	10.8040.75(14)	14	14	13	Add to enquiry
80	10.8040.80(14)	14	14	13	Add to enquiry
85	10.8040.85(14)	14	14	13	Add to enquiry
90	10.8040.90(14)	14	14	13	Add to enquiry
95	10.8040.95(14)	14	14	13	Add to enquiry
100	10.8040.100(14)	14	14	13	Add to enquiry

Steel - Zinc Plated

Length (mm)	Part Number	C	B	SW	ADD
15	10.8041.15(14)	10	14	13	Add to enquiry
20	10.8041.20(14)	14	14	13	Add to enquiry
25	10.8041.25(14)	14	14	13	Add to enquiry
30	10.8041.30(14)	14	14	13	Add to enquiry
35	10.8041.35(14)	14	14	13	Add to enquiry
40	10.8041.40(14)	14	14	13	Add to enquiry
45	10.8041.45(14)	14	14	13	Add to enquiry
50	10.8041.50(14)	14	14	13	Add to enquiry
55	10.8041.55(14)	14	14	13	Add to enquiry
60	10.8041.60(14)	14	14	13	Add to enquiry
65	10.8041.65(14)	14	14	13	Add to enquiry
70	10.8041.70(14)	14	14	13	Add to enquiry
75	10.8041.75(14)	14	14	13	Add to enquiry
80	10.8041.80(14)	14	14	13	Add to enquiry
85	10.8041.85(14)	14	14	13	Add to enquiry
90	10.8041.90(14)	14	14	13	Add to enquiry
95	10.8041.95(14)	14	14	13	Add to enquiry
100	10.8041.100(14)	14	14	13	Add to enquiry

Stainless Steel

Length (mm)	Part Number	C	B	SW	ADD
15	10.8043.15(14)	10	14	13	Add to enquiry
20	10.8043.20(14)	14	14	13	Add to enquiry
25	10.8043.25(14)	14	14	13	Add to enquiry
30	10.8043.30(14)	14	14	13	Add to enquiry
35	10.8043.35(14)	14	14	13	Add to enquiry
40	10.8043.40(14)	14	14	13	Add to enquiry
45	10.8043.45(14)	14	14	13	Add to enquiry
50	10.8043.50(14)	14	14	13	Add to enquiry
60	10.8043.60(14)	14	14	13	Add to enquiry
70	10.8043.70(14)	14	14	13	Add to enquiry
80	10.8043.80(14)	14	14	13	Add to enquiry
90	10.8043.90(14)	14	14	13	Add to enquiry
100	10.8043.100(14)	14	14	13	Add to enquiry

Polyamide with Brass Insert

Length (mm)	Part Number	C	B	SW	ADD
25	10.8045.25(14)	11	14	15	Add to enquiry
30	10.8045.30(14)	11	14	15	Add to enquiry
35	10.8045.35(14)	11	14	15	Add to enquiry
40	10.8045.40(14)	11	14	15	Add to enquiry
45	10.8045.45(14)	11	14	15	Add to enquiry
50	10.8045.50(14)	11	14	15	Add to enquiry
55	10.8045.55(14)	11	14	15	Add to enquiry
60	10.8045.60(14)	11	14	15	Add to enquiry

Male - Male

Polyamide Max Temp 110°C

Brass - Nickel Plated

Length (mm)	Part Number	C	B	SW	ADD
15	10.8080.15	14	14	13	Add to enquiry
20	10.8080.20	14	14	13	Add to enquiry
25	10.8080.25	14	14	13	Add to enquiry
30	10.8080.30	14	14	13	Add to enquiry
35	10.8080.35	14	14	13	Add to enquiry
40	10.8080.40	14	14	13	Add to enquiry
45	10.8080.45	14	14	13	Add to enquiry
50	10.8080.50	14	14	13	Add to enquiry
55	10.8080.55	14	14	13	Add to enquiry
60	10.8080.60	14	14	13	Add to enquiry
65	10.8080.65	14	14	13	Add to enquiry
70	10.8080.70	14	14	13	Add to enquiry
75	10.8080.75	14	14	13	Add to enquiry
80	10.8080.80	14	14	13	Add to enquiry
85	10.8080.85	14	14	13	Add to enquiry
90	10.8080.90	14	14	13	Add to enquiry
95	10.8080.95	14	14	13	Add to enquiry
100	10.8080.100	14	14	13	Add to enquiry

Steel - Zinc Plated

Length (mm)	Part Number	C	B	SW	ADD
15	10.8081.15	14	14	13	Add to enquiry
20	10.8081.20	14	14	13	Add to enquiry
25	10.8081.25	14	14	13	Add to enquiry
30	10.8081.30	14	14	13	Add to enquiry
35	10.8081.35	14	14	13	Add to enquiry
40	10.8081.40	14	14	13	Add to enquiry
45	10.8081.45	14	14	13	Add to enquiry
50	10.8081.50	14	14	13	Add to enquiry
55	10.8081.55	14	14	13	Add to enquiry
60	10.8081.60	14	14	13	Add to enquiry
65	10.8081.65	14	14	13	Add to enquiry
70	10.8081.70	14	14	13	Add to enquiry
75	10.8081.75	14	14	13	Add to enquiry
80	10.8081.80	14	14	13	Add to enquiry
85	10.8081.85	14	14	13	Add to enquiry
90	10.8081.90	14	14	13	Add to enquiry
95	10.8081.95	14	14	13	Add to enquiry
100	10.8081.100	14	14	13	Add to enquiry

Stainless Steel

Length (mm)	Part Number	C	B	SW	ADD
15	10.8083.15	14	14	13	Add to enquiry
20	10.8083.20	14	14	13	Add to enquiry
25	10.8083.25	14	14	13	Add to enquiry
30	10.8083.30	14	14	13	Add to enquiry
35	10.8083.35	14	14	13	Add to enquiry
40	10.8083.40	14	14	13	Add to enquiry
45	10.8083.45	14	14	13	Add to enquiry
50	10.8083.50	14	14	13	Add to enquiry
60	10.8083.60	14	14	13	Add to enquiry
70	10.8083.70	14	14	13	Add to enquiry
80	10.8083.80	14	14	13	Add to enquiry
90	10.8083.90	14	14	13	Add to enquiry
100	10.8083.100	14	14	13	Add to enquiry

Polyamide with Brass Insert

Length (mm)	Part Number	C	B	SW	ADD
25	10.8085.25	14	14	15	Add to enquiry
30	10.8085.30	14	14	15	Add to enquiry
35	10.8085.35	14	14	15	Add to enquiry
40	10.8085.40	14	14	15	Add to enquiry
45	10.8085.45	14	14	15	Add to enquiry
50	10.8085.50	14	14	15	Add to enquiry
55	10.8085.55	14	14	15	Add to enquiry
60	10.8085.60	14	14	15	Add to enquiry
65	10.8085.65	14	14	15	Add to enquiry
70	10.8085.70	14	14	15	Add to enquiry
75	10.8085.75	14	14	15	Add to enquiry
80	10.8085.80	14	14	15	Add to enquiry
85	10.8085.85	14	14	15	Add to enquiry
90	10.8085.90	14	14	15	Add to enquiry
95	10.8085.95	14	14	15	Add to enquiry
100	10.8085.100	14	14	15	Add to enquiry

UNC

Female - Female

Polyamide Max Temp 110°C

Brass - Nickel Plated

Length (mm)	Part Number	C	B	SW	ADD
5	10.1060.05	5	5	5	Add to enquiry
6	10.1060.06	5	5	5	Add to enquiry
8	10.1060.08	8	8	5	Add to enquiry
10	10.1060.10	8	8	5	Add to enquiry
12	10.1060.12	8	8	5	Add to enquiry
15	10.1060.15	8	8	5	Add to enquiry

Male - Female

Polyamide Max Temp 110°C

Brass - Nickel Plated

Length (mm)	Part Number	C	B	SW	ADD
5	10.1040.56	3	6	5	Add to enquiry
5	10.1040.58	3	8	5	Add to enquiry
5	10.1040.512	3	12	5	Add to enquiry
6	10.1040.66	3	6	5	Add to enquiry
6	10.1040.68	3	8	5	Add to enquiry
6	10.1040.612	3	12	5	Add to enquiry

Length (mm)	Part Number	D	S	ADD
3	10x80030100.10	8	1	Add to enquiry
6.5	10x80065100.10	8	1	Add to enquiry
13	10x80130100.10	8	1	Add to enquiry

Looking for Spacers?

Browse Spacers By Size

M2

Female - Female

Brass - Nickel Plated

Steel - Zinc Plated

Stainless Steel

Polyamide

Male - Female

Brass - Nickel Plated

Steel - Zinc Plated

Stainless Steel

Male - Male

Brass - Nickel Plated

Steel - Zinc Plated

Spacer Sleeves

Aluminium

M2.5

Female - Female

Brass - Nickel Plated

Steel - Zinc Plated

Stainless Steel

Polyamide

Polyamide with Brass Insert

Male - Female

Brass - Nickel Plated

Steel - Zinc Plated

Stainless Steel

Polyamide

Polyamide with Brass Insert

Male - Male

Brass - Nickel Plated

Steel - Zinc Plated

Stainless Steel

Polyamide with Brass Insert

Self Tapping

Brass - Nickel Plated

Steel Zinc Plated

Spacer Sleeves

Aluminium

Polyamid, Black

M3

Female - Female

Brass - Nickel Plated

Steel - Zinc Plated

Stainless Steel

Polyamide

Polyamide with Brass Insert

Male - Female

Brass - Nickel Plated

Steel - Zinc Plated

Stainless Steel

Polyamide

Polyamide with Brass Insert

Male - Male

Brass - Nickel Plated

Steel - Zinc Plated

Stainless Steel

Polyamide with Brass Insert

Self Tapping (Group 1)

Brass - Nickel Plated

Steel Zinc Plated

Self Tapping (Group 2)

Brass - Nickel Plated

Steel Zinc Plated

Self Tapping (Group 3)

Brass - Nickel Plated

Steel Zinc Plated

Spacer Sleeves

Aluminium

Polystyrene, Black

Polyamid, Black

Polycarbonate, Grey

M4

Female - Female

Brass - Nickel Plated

Steel - Zinc Plated

Stainless Steel

Polyamide

Polyamide with Brass Insert
